Asynchronous SRAM chip, 1Mb density, 64K x 16 configuration, offering 10ns access time. Features a 3.3V operating supply voltage and a 100MHz maximum frequency. Packaged in a 44-pin TSOP-II for surface mounting, this industrial temperature grade component is lead-free and RoHS compliant.
Frequency100MHz
PackageTSOP
Current60mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1021DV33-10ZSXIT technical specifications.
General
| Access Time | 10ns |
| Access Time-Max | 10ns |
| Address Bus Width | 16b |
| Package/Case | TSOP |
| Density | 1Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 1Mb |
| Memory Type | RAM, , SRAM - Asynchronous, SDR |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Ports | 1 |
| Number of Words | 64000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 60mA |
| Supply Voltage-Nom | 3.6V |
| Sync/Async | Asynchronous |
| Temperature Grade | INDUSTRIAL |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY7C1021DV33-10ZSXIT Datasheet
Download the complete datasheet for Cypress CY7C1021DV33-10ZSXIT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

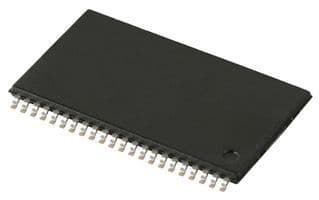

Product Images
