High-speed, 4Mb CMOS SRAM with a 10ns access time. This asynchronous memory features an 18-bit address bus and a 16-bit word size, organized as 256K words. Designed for surface mounting, it operates with a 5V supply voltage and is housed in a 44-pin SOJ package. The component supports a parallel interface and is RoHS compliant, suitable for industrial temperature ranges from -40°C to 85°C.
Frequency10GHz
PackageSOJ
Current90mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1041D-10VXI technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Address Bus Width
18b
Package/Case
SOJ
Density
4Mb
Frequency
10GHz
Interface
Parallel
Lead Free
Lead Free
Max Frequency
100MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
4Mb
Memory Type
Volatile, , SRAM, SDR
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Ports
1
Number of Words
256000
Operating Supply Voltage
5V
Package Quantity
17
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
90mA
Supply Voltage-Nom
5V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1041D-10VXI Datasheet
Download the complete datasheet for Cypress CY7C1041D-10VXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

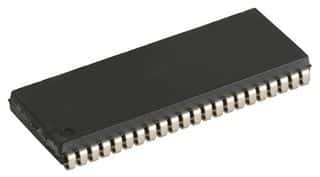

Product Images
