4Mb SRAM, 256K x 16 configuration, offering 10ns access time. This asynchronous, volatile memory features a parallel interface and operates at 100MHz with a 3.3V supply voltage. Packaged in a 48-pin VFBGA (6x8mm, 0.21mm height), it supports industrial temperature ranges from -40°C to 85°C.
Frequency100MHz
PackageVFBGA
Current90mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1041DV33-10BVI technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Address Bus Width
18b
Package/Case
VFBGA
Density
4Mb
Frequency
100MHz
Height
0.21mm
Interface
Parallel
Lead Free
Contains Lead
Length
8mm
Max Operating Temperature
85°C
Memory Size
4Mb
Memory Type
SDR, , Volatile, SRAM
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Ports
1
Number of Words
256000
Operating Supply Voltage
3.3V
Package Quantity
480
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
No
Supply Current
90mA
Supply Voltage-Nom
3V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Width
6mm
Word Size
16b
Compliance
RoHS
Not CompliantNo
Datasheet
Cypress CY7C1041DV33-10BVI Datasheet
Download the complete datasheet for Cypress CY7C1041DV33-10BVI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

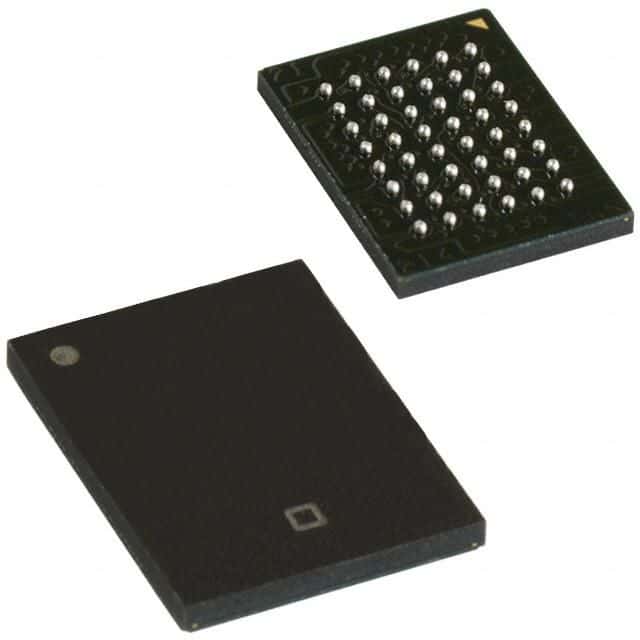

Product Images
