4Mb SRAM, 256K x 16 configuration, offering 10ns access time. This asynchronous, volatile memory features a parallel interface and operates at 3.3V supply voltage. Packaged in a 48-ball VFBGA (6x8mm, 1mm height) for surface mounting, it supports industrial temperature ranges from -40°C to 85°C. RoHS compliant and lead-free.
PackageVFBGA
Current90mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1041DV33-10BVJXI technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Address Bus Width
18b
Package/Case
VFBGA
Density
4Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
4Mb
Memory Type
SDR, , Volatile, SRAM
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of Ports
1
Number of Words
256000
Operating Supply Voltage
3.3V
Package Quantity
480
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
90mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1041DV33-10BVJXI Datasheet
Download the complete datasheet for Cypress CY7C1041DV33-10BVJXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

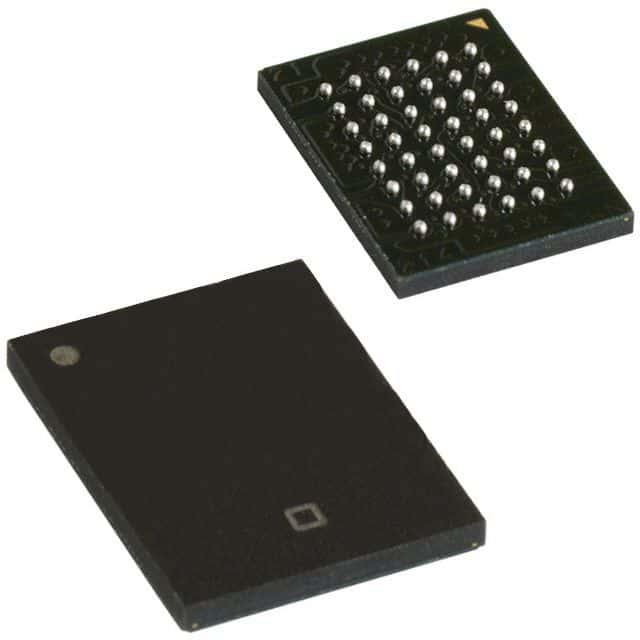

Product Images
