4Mb SRAM, 512K x 8 configuration, offering 10ns access time. This asynchronous, volatile memory component operates with a 3.3V supply voltage and features a parallel interface. Packaged in a 36-pin SOJ (Surface Mount) format, it supports industrial temperature ranges from -40°C to 85°C. RoHS compliant and lead-free.
Frequency10GHz
PackageSOJ
Current90mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1049DV33-10VXIT technical specifications.
General
| Access Time | 10ns |
| Access Time-Max | 10ns |
| Address Bus Width | 19b |
| Package/Case | SOJ |
| Density | 4Mb |
| Frequency | 10GHz |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 4Mb |
| Memory Type | SRAM, , Volatile |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Ports | 1 |
| Number of Words | 512000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 90mA |
| Supply Voltage-Nom | 3.3V |
| Sync/Async | Asynchronous |
| Temperature Grade | INDUSTRIAL |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY7C1049DV33-10VXIT Datasheet
Download the complete datasheet for Cypress CY7C1049DV33-10VXIT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

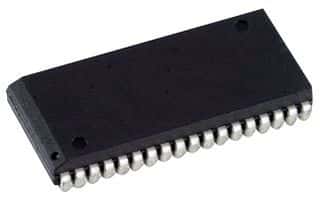

Product Images
