8Mb Asynchronous SRAM, 512K x 16 configuration, offering a 10ns access time. This CMOS component features a parallel interface and operates at 3.3V, with a voltage range of 3V to 3.6V. Packaged in a 48-ball FBGA (MO-207), it supports surface mounting and operates within an industrial temperature range of -40°C to 85°C. The component is lead-free and RoHS compliant.
Frequency10GHz
PackageFBGA
Current110mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1051DV33-10BAXI technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Address Bus Width
19b
Package/Case
FBGA
Density
8Mb
Frequency
10GHz
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
8Mb
Memory Type
RAM, , SRAM - Asynchronous, SDR
Min Supply Voltage
3V
Mount
Surface Mount
Number of Ports
1
Number of Words
512000
Operating Supply Voltage
3.3V
Package Quantity
480
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
110mA
Supply Voltage-Nom
3.3V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1051DV33-10BAXI Datasheet
Download the complete datasheet for Cypress CY7C1051DV33-10BAXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

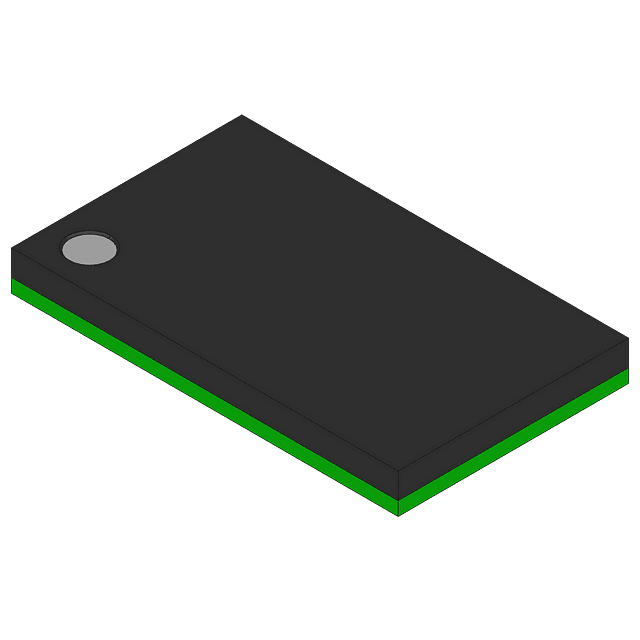

Product Images
