8Mb SRAM, 512K x 16 configuration, offering 12ns access time. This asynchronous, volatile memory utilizes a parallel interface and operates from a 3.3V supply. Packaged in a 48-ball FBGA (PBGA48) for surface mounting, it supports an industrial temperature range of -40°C to 85°C and is lead-free and RoHS compliant.
PackageFBGA
Current100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1051DV33-12BAXIT technical specifications.
General
Access Time
12ns
Access Time-Max
12ns
Address Bus Width
19b
Package/Case
FBGA
Density
8Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
8Mb
Memory Type
SDR, , Volatile, SRAM
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of Ports
1
Number of Words
512000
Operating Supply Voltage
3.3V
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
100mA
Supply Voltage-Nom
3.3V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1051DV33-12BAXIT Datasheet
Download the complete datasheet for Cypress CY7C1051DV33-12BAXIT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

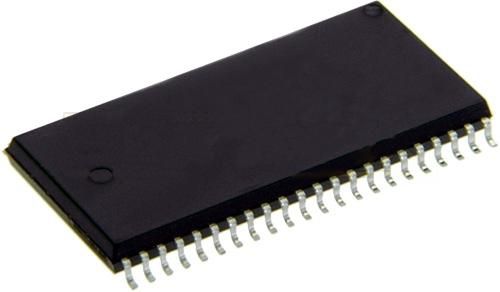

Product Images
