Cypress
CY7C1079DV33-12BAXI
Standard SRAM, 4MX8, 12ns, CMOS, PBGA48, 8 X 9.50 MM, 1.20 MM HEIGHT, LEAD FREE, FBGA-48
PackageFBGA
Current250mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1079DV33-12BAXI technical specifications.
General
Access Time
12ns
Access Time-Max
12ns
Address Bus Width
22b
Package/Case
FBGA
Density
32Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Memory Size
32Mb
Memory Type
SDR, , RAM, SRAM - Asynchronous
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Ports
1
Operating Supply Voltage
3.3V
Package Quantity
210
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
250mA
Sync/Async
Asynchronous
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1079DV33-12BAXI Datasheet
Download the complete datasheet for Cypress CY7C1079DV33-12BAXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

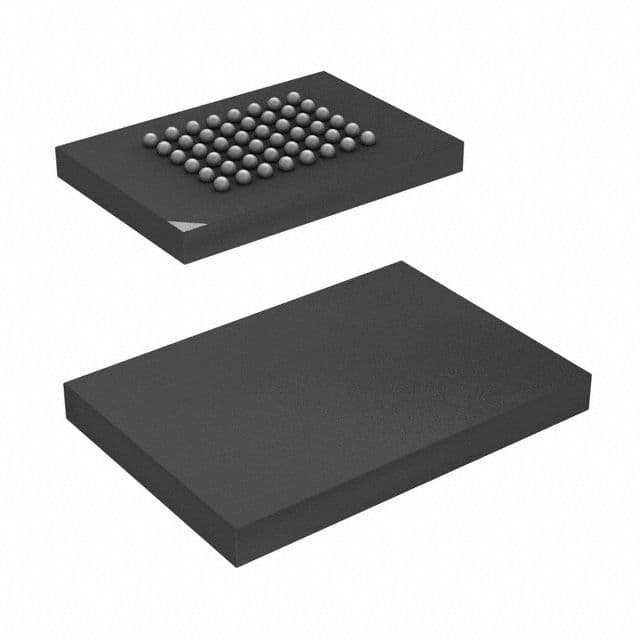

Product Images
