18Mb DDR SRAM, 400MHz synchronous interface, 0.45ns access time. Features a 19-bit address bus and 18-bit word size. Operates from 1.7V to 1.9V supply voltage, with a nominal 1.8V. Packaged in an FBGA for surface mounting, this RoHS compliant component is suitable for commercial temperature ranges (0°C to 70°C).
Frequency400MHz
PackageFBGA
Current510mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1168KV18-400BZXC technical specifications.
General
Access Time
0.45ns
Access Time-Max
0.45ns
Address Bus Width
19b
Package/Case
FBGA
Density
18Mb
Frequency
400MHz
Interface
Parallel
Lead Free
Lead Free
Max Frequency
400MHz
Max Operating Temperature
70°C
Memory Size
18Mb
Memory Type
DDR, , RAM
Min Operating Temperature
0°C
Max Supply Voltage
1.9V
Min Supply Voltage
1.7V
Mount
Surface Mount
Number of Ports
1
Operating Supply Voltage
1.8V
Package Quantity
136
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
510mA
Supply Voltage-Nom
1.8V
Sync/Async
Synchronous
Temperature Grade
COMMERCIAL
Word Size
18b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1168KV18-400BZXC Datasheet
Download the complete datasheet for Cypress CY7C1168KV18-400BZXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

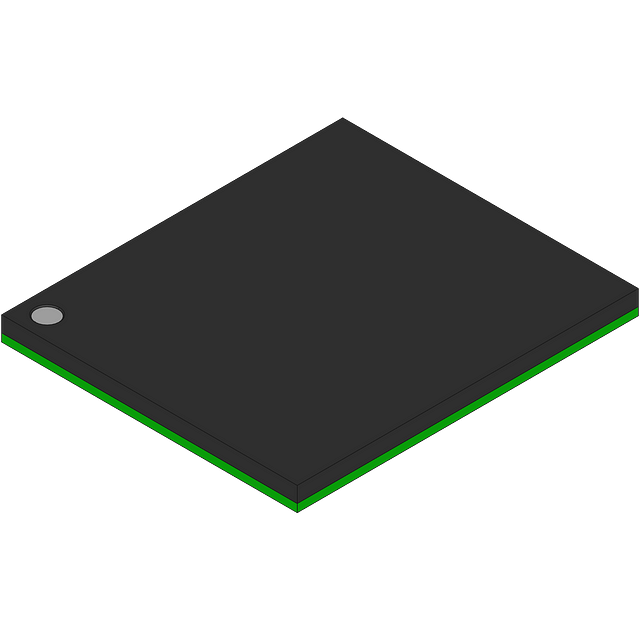

Product Images
