This 4.5Mb SDR SRAM is a volatile memory device with a 17-bit address bus width and a maximum operating frequency of 100MHz. It operates within a supply voltage range of 3.135V to 3.6V and has a maximum operating temperature of 70°C. The device is packaged in a BGA package and is available in a tape and reel format. It is designed for surface mount applications and is lead free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7C1345G-100BGXCT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 8ns |
| Address Bus Width | 17b |

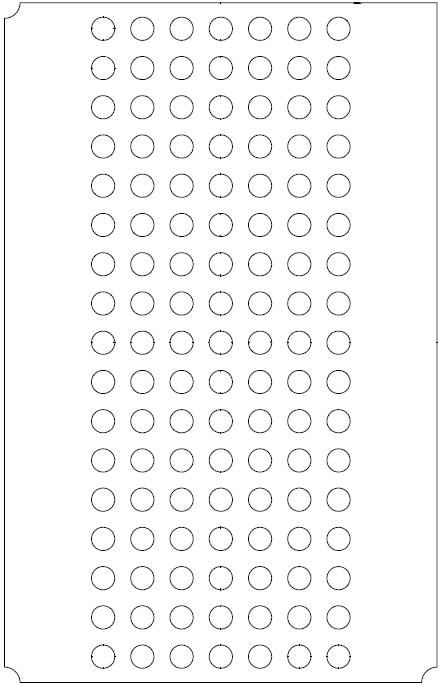

| Package/Case | BGA |
| Density | 4Mb |
| Frequency | 100MHz |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Frequency | 100MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 4.5Mb |
| Memory Type | SDR, , Volatile, SRAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Ports | 4 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 84 |
| Packaging | Tape and Reel |
| RoHS | Compliant |
