16Kb Dual-Port SRAM, featuring 2000 words x 8-bit organization, offers a 55ns access time. This asynchronous, volatile memory component operates with a 5V supply voltage, supporting a range from 4.5V to 5.5V. Packaged in a 52-pin PLCC for surface mounting, it is lead-free and RoHS compliant, suitable for operation between 0°C and 70°C.
PackagePLCC
Current275mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C136E-55JXC technical specifications.
General
| Access Time | 55ns |
| Access Time-Max | 55ns |
| Address Bus Width | 22b |
| Package/Case | PLCC |
| Density | 16Kb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 16Kb |
| Memory Type | SDR, , Volatile, SRAM |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Ports | 2 |
| Number of Words | 2000 |
| Operating Supply Voltage | 5V |
| Package Quantity | 23 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 275mA |
| Supply Voltage-Nom | 5V |
| Sync/Async | Asynchronous |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY7C136E-55JXC Datasheet
Download the complete datasheet for Cypress CY7C136E-55JXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

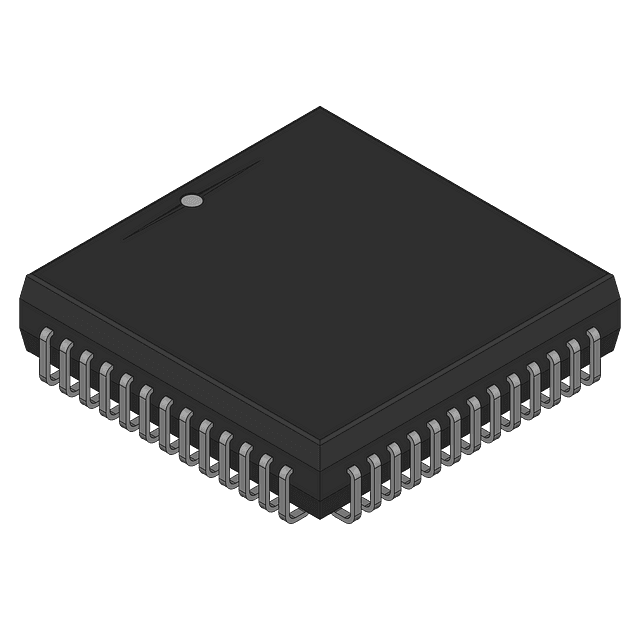

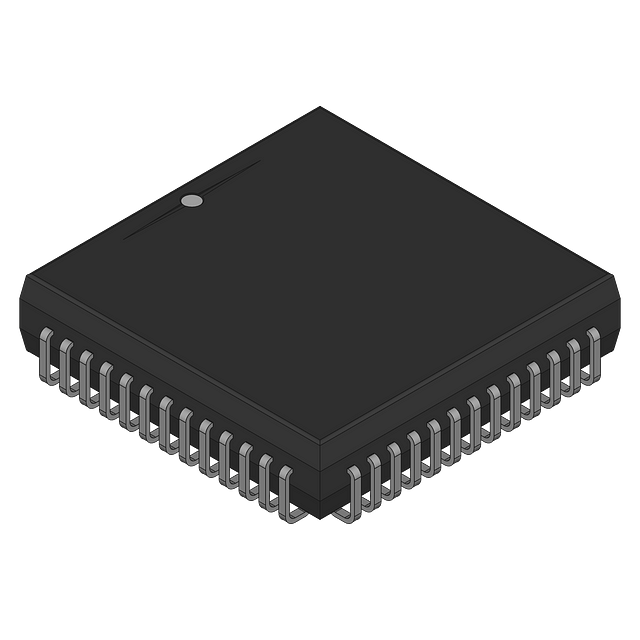

Product Images
