36Mb DDR SRAM, 1Mx36 configuration, offers a fast 0.45ns access time and operates at a maximum frequency of 300MHz. This synchronous memory component features a 20-bit address bus and a 36-bit word size, utilizing a parallel interface. Packaged in a 165-ball FBGA (MO-216) for surface mounting, it operates with a supply voltage of 1.8V (1.7V to 1.9V range) and has an operating temperature range of 0°C to 70°C.
Frequency300MHz
PackageFBGA
Current560mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1420KV18-300BZXC technical specifications.
General
Access Time
0.45ns
Access Time-Max
0.45ns
Address Bus Width
20b
Package/Case
FBGA
Density
36Mb
Frequency
300MHz
Interface
Parallel
Max Frequency
300MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
1.9V
Memory Size
36Mb
Memory Type
RAM, , DDR
Min Supply Voltage
1.7V
Mount
Surface Mount
Number of Ports
1
Operating Supply Voltage
1.8V
Package Quantity
136
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
560mA
Sync/Async
Synchronous
Word Size
36b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1420KV18-300BZXC Datasheet
Download the complete datasheet for Cypress CY7C1420KV18-300BZXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

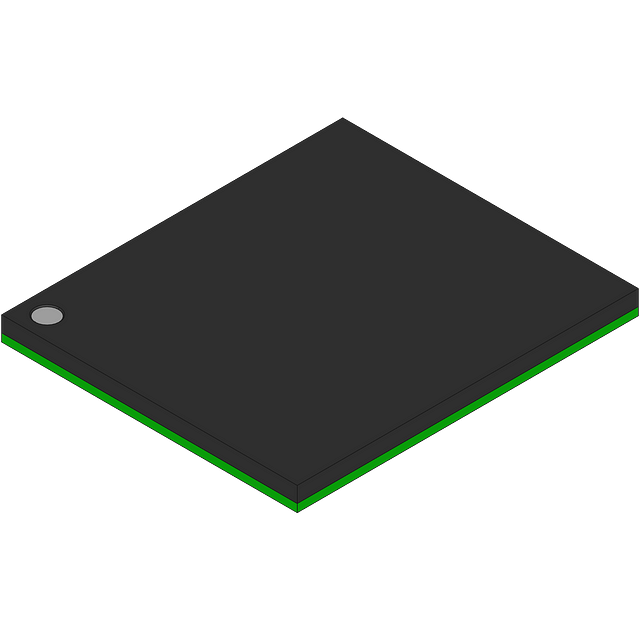

Product Images
