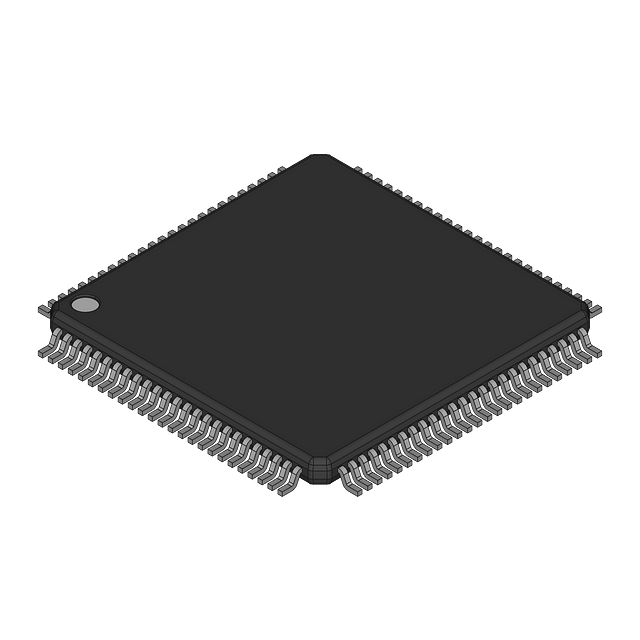

36Mb ZBT SRAM, 2.6ns access time, 250MHz max frequency, 20-bit address bus, 36-bit word size, and 4 ports. This CMOS, surface-mount, TQFP-packaged integrated circuit operates with a 2.5V supply voltage, supporting a range of 2.375V to 2.625V. It features SDR, volatile memory with a 435mA supply current and is RoHS compliant.
Sign in to ask questions about the Cypress CY7C1460AV25-250AXC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY7C1460AV25-250AXC technical specifications.
| Access Time | 2.6ns |
| Access Time-Max | 2.6ns |
| Address Bus Width | 20b |
| Package/Case | TQFP |
| Density | 36Mb |
| Frequency | 250MHz |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Frequency | 250MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 2.625V |
| Memory Size | 36Mb |
| Memory Type | SDR, , Volatile, SRAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Ports | 4 |
| Operating Supply Voltage | 2.5V |
| Package Quantity | 72 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | NoBL™ |
| Supply Current | 435mA |
| Sync/Async | Synchronous |
| Word Size | 36b |
| RoHS | Compliant |
