Cypress
CY7C1470BV33-200AXI
ZBT SRAM, 2MX36, 3ns, CMOS, PQFP100, 14 X 20 MM, 1.40 MM HEIGHT, LEAD FREE, PLASTIC, MS-026, TQFP-100
Frequency200MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1470BV33-200AXI technical specifications.
General
Access Time
3ns
Address Bus Width
21b
Package/Case
TQFP
Density
72Mb
Frequency
200MHz
Interface
Parallel
Max Frequency
200MHz
Max Operating Temperature
85°C
Memory Size
72Mb
Memory Type
SDR, , Volatile, SRAM
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3.135V
Mount
Surface Mount
Number of Ports
4
Operating Supply Voltage
3.3V
Package Quantity
72
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
NoBL™
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1470BV33-200AXI Datasheet
Download the complete datasheet for Cypress CY7C1470BV33-200AXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

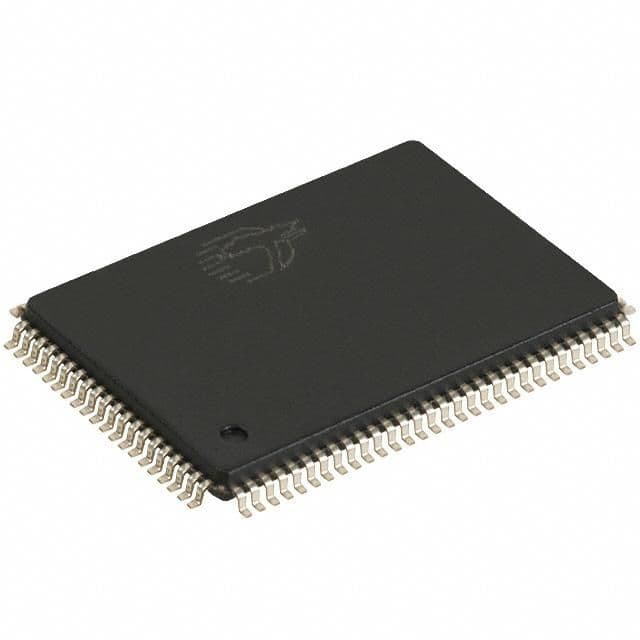

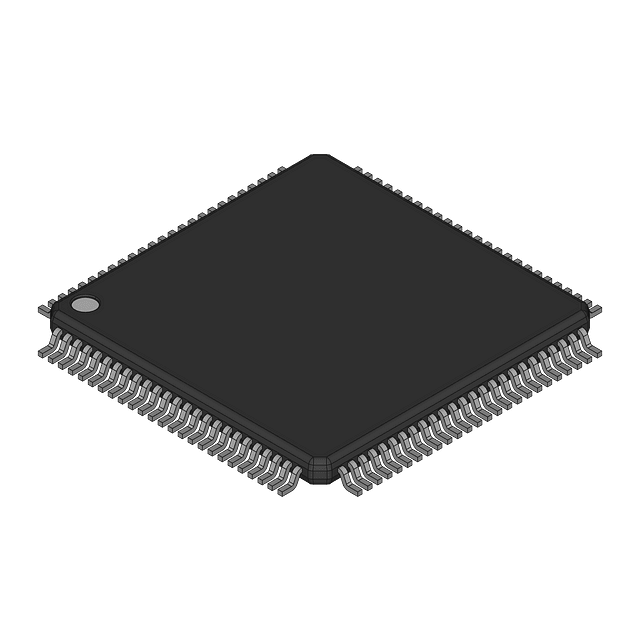

Product Images
