This 144Mb DDR synchronous SRAM features a 23-bit address bus and operates at a maximum frequency of 300MHz. It is available in a surface mount FBGA package and is designed to function within a temperature range of 0°C to 70°C. The device requires a supply voltage between 1.7V and 1.9V and draws a maximum supply current of 610mA. It is compliant with RoHS regulations and is available in a tray packaging configuration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7C1618KV18-300BZXC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY7C1618KV18-300BZXC technical specifications.
| Access Time | 0.45ns |
| Address Bus Width | 23b |

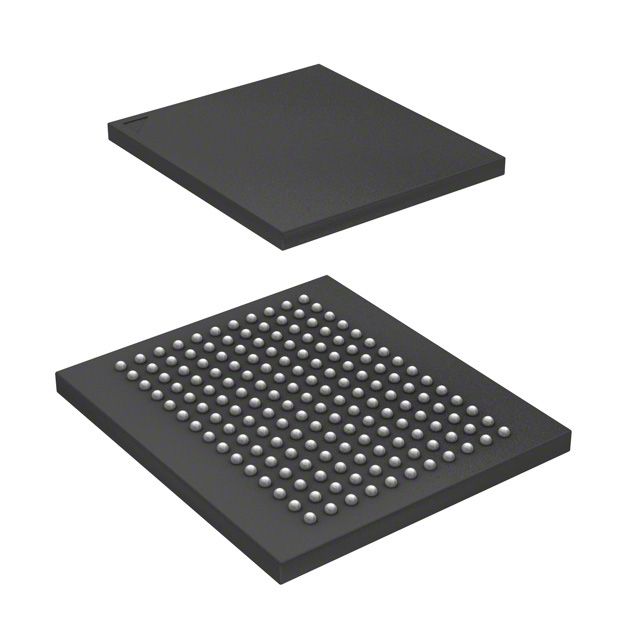

| Package/Case | FBGA |
| Density | 144Mb |
| Frequency | 300MHz |
| Interface | Parallel |
| Max Frequency | 300MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 1.9V |
| Memory Size | 144Mb |
| Memory Type | DDR, , RAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of Ports | 1 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 105 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 610mA |
| Sync/Async | Synchronous |
| Word Size | 18b |
| RoHS | Compliant |
Download the complete datasheet for Cypress CY7C1618KV18-300BZXC to view detailed technical specifications.
