Asynchronous SRAM chip with 256Kb density, organized as 32K x 8 bits. Features a 10ns access time and a parallel interface. Operates at 5V with a maximum supply current of 80mA. This surface-mount component is housed in a 28-pin SOJ package and rated for industrial temperature ranges from -40°C to 85°C.
PackageSOJ
Current80mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C199D-10VXI technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Address Bus Width
15b
Package/Case
SOJ
Density
256Kb
Height
0.14inch
Interface
Parallel
Lead Free
Lead Free
Length
18.11mm
Max Operating Temperature
85°C
Memory Size
256Kb
Memory Type
RAM, , SRAM - Asynchronous, SDR
Min Operating Temperature
-40°C
Max Supply Current
80mA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Ports
1
Number of Words
32000
Operating Supply Voltage
5V
Package Quantity
27
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
80mA
Supply Voltage-Nom
5V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Width
0.3inch
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C199D-10VXI Datasheet
Download the complete datasheet for Cypress CY7C199D-10VXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

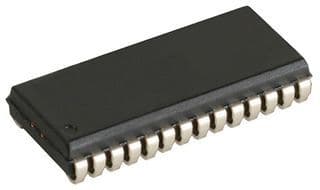

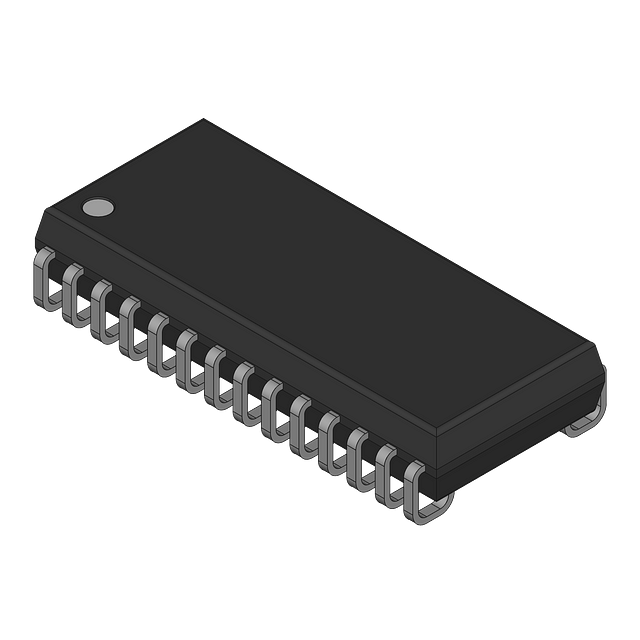

Product Images
