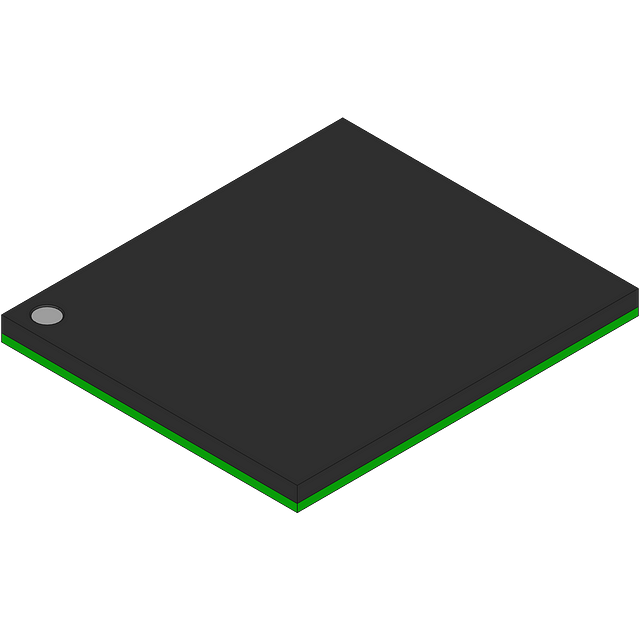

18Mb DDR SRAM, featuring 0.45ns access time and a 550MHz maximum frequency. This synchronous memory component offers a 512K x 36 configuration with an 18-bit address bus and 36-bit word size. Designed for surface mount applications, it operates from a 1.7V to 1.9V supply voltage range and is housed in a 165-pin FBGA package. This RoHS compliant, lead-free integrated circuit is suitable for commercial temperature grades.
Frequency550MHz
PackageFBGA
Current820mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C2170KV18-550BZXC technical specifications.
General
Access Time
0.45ns
Access Time-Max
0.45ns
Address Bus Width
18b
Package/Case
FBGA
Density
18Mb
Frequency
550MHz
Interface
Parallel
Lead Free
Lead Free
Max Frequency
550MHz
Max Operating Temperature
70°C
Max Supply Voltage
1.9V
Memory Size
18Mb
Memory Type
DDR, , RAM
Min Operating Temperature
0°C
Min Supply Voltage
1.7V
Mount
Surface Mount
Number of Ports
2
Number of Words
512000
Operating Supply Voltage
1.8V
Package Quantity
136
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
820mA
Supply Voltage-Nom
1.9V
Sync/Async
Synchronous
Temperature Grade
COMMERCIAL
Word Size
36b
Compliance
RoHS
Compliant
