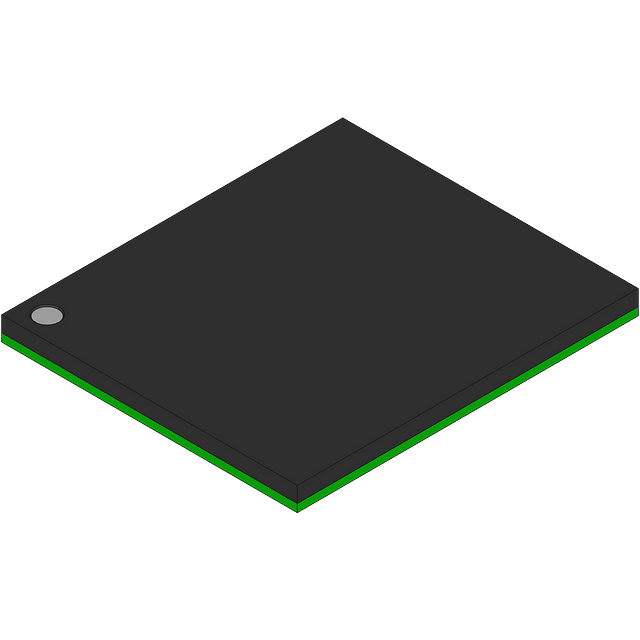

High-speed 72Mb QDR SRAM, featuring a 0.45ns access time and 500MHz maximum frequency. This synchronous memory component offers a 4Mx18 configuration with a 20-bit address bus and an 18-bit word size. Designed for surface mount applications, it operates with a 1.8V supply voltage and is housed in an FBGA package. Suitable for a wide operating temperature range of -40°C to 85°C, this RoHS compliant component provides a parallel interface and dual ports.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7C25632KV18-500BZXI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY7C25632KV18-500BZXI technical specifications.
| Access Time | 0.45ns |
| Access Time-Max | 0.45ns |
| Address Bus Width | 20b |
| Package/Case | FBGA |
| Density | 72Mb |
| Frequency | 500MHz |
| Interface | Parallel |
| Max Frequency | 500MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.9V |
| Memory Size | 72Mb |
| Memory Type | QDR, , RAM |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of Ports | 2 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 136 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 850mA |
| Sync/Async | Synchronous |
| Word Size | 18b |
| RoHS | Compliant |
Download the complete datasheet for Cypress CY7C25632KV18-500BZXI to view detailed technical specifications.
