Cypress
CY7C25702KV18-500BZC
DDR SRAM, 2MX36, 0.45ns, CMOS, PBGA165, 15 MM X 13 MM, 1.4 MM HEIGHT, MO-216,FBGA-165
Frequency500MHz
PackageFBGA
Current890mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C25702KV18-500BZC technical specifications.
General
Access Time
0.45ns
Address Bus Width
20b
Package/Case
FBGA
Density
72Mb
Frequency
500MHz
Interface
Parallel
Max Frequency
500MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
1.9V
Memory Size
72Mb
Memory Type
DDR, , Volatile, SRAM
Min Supply Voltage
1.7V
Mount
Surface Mount
Number of Ports
1
Operating Supply Voltage
1.8V
Package Quantity
136
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
No
Supply Current
890mA
Sync/Async
Synchronous
Word Size
36b
Compliance
RoHS
Not CompliantNo
Datasheet
Cypress CY7C25702KV18-500BZC Datasheet
Download the complete datasheet for Cypress CY7C25702KV18-500BZC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

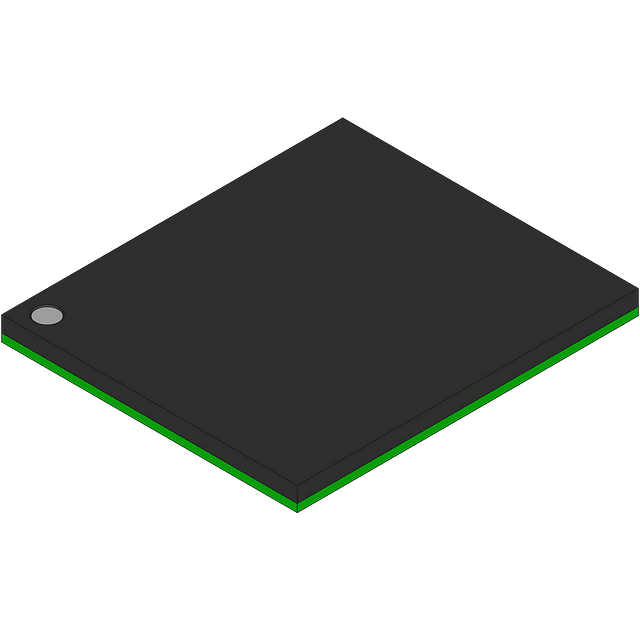

Product Images
