Synchronous FIFO memory IC, 512 words x 9 bits organization, offering 10ns access time and 66.7MHz maximum frequency. This unidirectional, CMOS component features a 4.5Kb density and supports programmable flags. Packaged in a 32-lead PLCC with tin, matte contact plating, it operates from a 4.5V to 5.5V supply voltage and is RoHS compliant.
Frequency66.7MHz
PackagePLCC
Current35mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C4211-15JXC technical specifications.
General
| Access Time | 10ns |
| Access Time-Max | 10ns |
| Bus Directional | Unidirectional |
| Package/Case | PLCC |
| Contact Plating | Tin, Matte |
| Data Bus Width | 9b |
| Density | 4.5Kb |
| Direction | Unidirectional |
| Frequency | 66.7MHz |
| FWFT Support | No |
| Lead Free | Lead Free |
| Max Frequency | 66.7MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 35mA |
| Max Supply Voltage | 5.5V |
| Memory Size | 4Kb |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Operating Supply Voltage | 5V |
| Organization | 512X9 |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Programmable Flags Support | Yes |
| Retransmit Capability | No |
| RoHS Compliant | Yes |
| Series | CY7C |
| Supply Current | 35mA |
| Sync/Async | Synchronous |
| Word Size | 9b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY7C4211-15JXC Datasheet
Download the complete datasheet for Cypress CY7C4211-15JXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

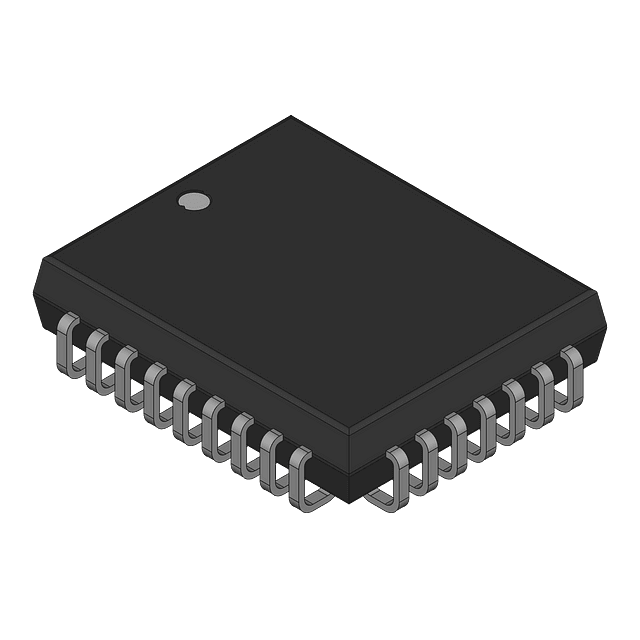

Product Images
