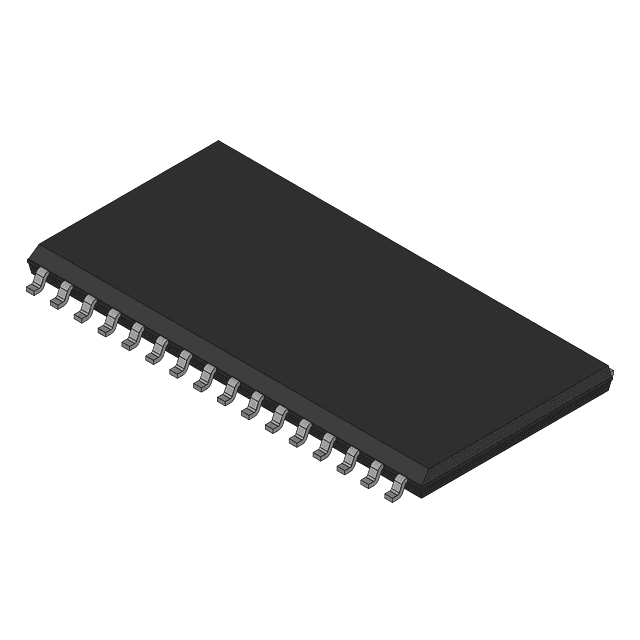

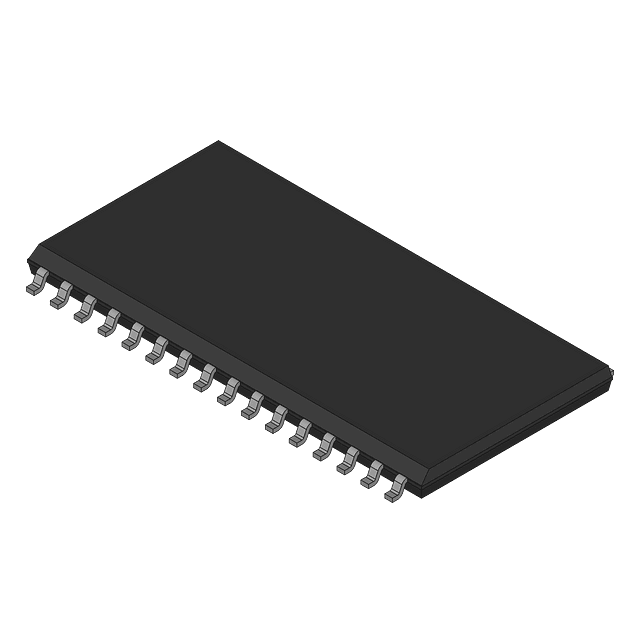

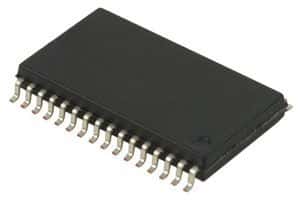

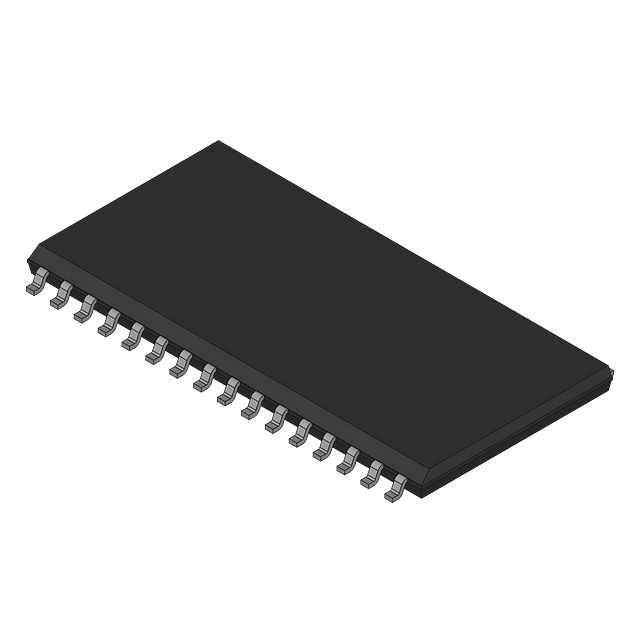

5-channel LAN controller, CMOS technology, SOIC package. Features 16-bit data bus, 2.5Mbps data rate, and 10MHz frequency. Operates with external oscillator, 4.5V to 5.5V supply voltage, and 32mA operating current. Includes 12KB FLASH/ROM memory, 2KB RAM, 11 I/Os, and 2 timers/counters. RoHS compliant, surface mountable, with a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7C53120E2-10SXI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Contact Plating | Tin, Gold, Matte |
| Data Bus Width | 16b |
| Data Rate | 2.5Mbps |
| Frequency | 10MHz |
| Interface | Serial |
| Lead Free | Lead Free |
| Max Frequency | 10MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 12KB |
| Memory Type | FLASH, ROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of I/Os | 11 |
| Number of Timers/Counters | 2 |
| Operating Supply Current | 32mA |
| Operating Supply Voltage | 5V |
| Oscillator Type | External |
| Package Quantity | 875 |
| Packaging | Rail/Tube |
| Peripherals | LVD |
| Radiation Hardening | No |
| RAM Size | 2KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Neuron® |
| Weight | 0.027023oz |
| RoHS | Compliant |
