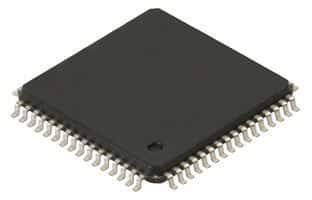

5-channel serial LAN controller, CMOS technology, featuring an 8-bit data bus and a 20MHz maximum frequency. This interface IC offers 2KB RAM, 512B FLASH memory, and operates with a 5V supply voltage. Packaged in a 14mm x 14mm x 1.4mm TQFP with tin, gold, and matte contact plating, it supports a data rate of 2.5Mbps and includes 19 I/Os and 2 timers. Designed for surface mounting, this RoHS compliant component operates within a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7C53150-20AXI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TQFP |
| Contact Plating | Tin, Gold, Matte |
| Data Bus Width | 8b |
| Data Rate | 2.5Mbps |
| Frequency | 20MHz |
| Height | 1.4mm |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 512B |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of I/Os | 19 |
| Number of Timers/Counters | 2 |
| Operating Supply Current | 32mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 90 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 2KB |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Neuron® |
| Weight | 0.01272oz |
| Width | 14mm |
| RoHS | Compliant |
