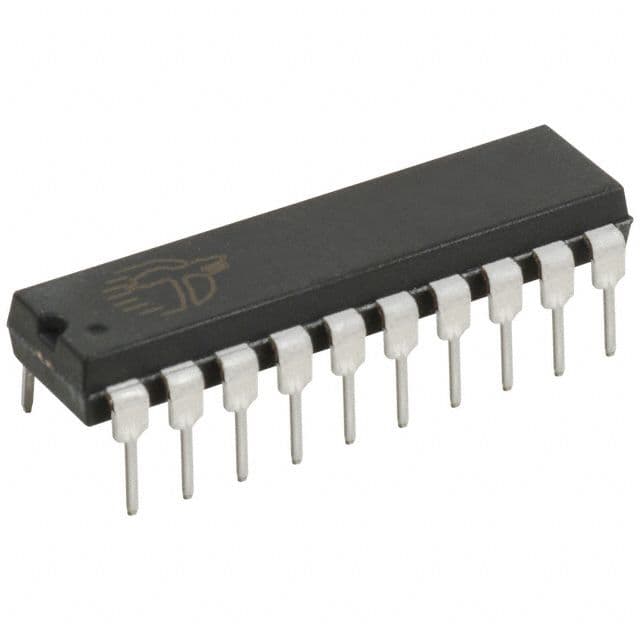

The CY7C63001A-PC is a 4KB OTP microcontroller with a 12MHz operating frequency and 5V supply voltage. It features a USB interface and is packaged in a DIP-20 package. The device operates over a temperature range of 0°C to 70°C and is not RoHS compliant. It has 12 I/Os and 1 timer/counter.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7C63001A-PC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY7C63001A-PC technical specifications.
| Access Time | 12us |
| Package/Case | DIP |
| Core Architecture | M8C |
| Frequency | 12MHz |
| Interface | USB |
| Lead Free | Contains Lead |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 4KB |
| Memory Type | OTP, EPROM, |
| Min Supply Voltage | 4V |
| Mount | Through Hole |
| Number of I/Os | 12 |
| Number of Timers/Counters | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| RAM Size | 128B |
| RoHS Compliant | No |
| Series | M8™ |
| RoHS | Not Compliant |
Download the complete datasheet for Cypress CY7C63001A-PC to view detailed technical specifications.
