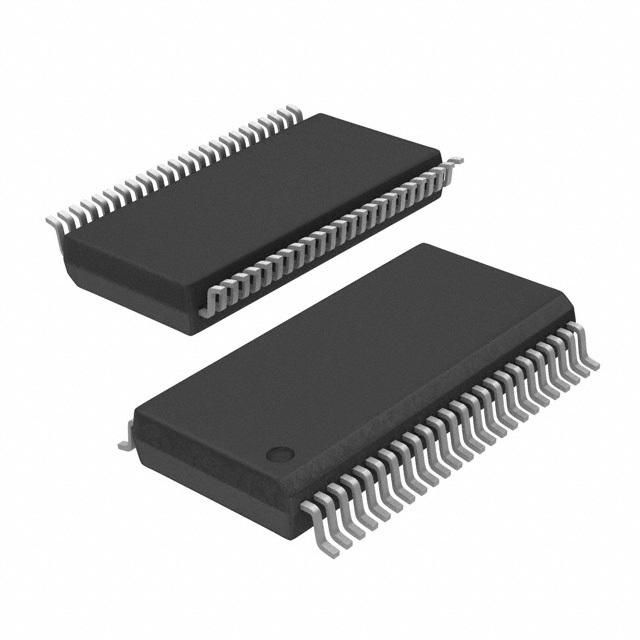

8-bit RISC microcontroller featuring an M8C core architecture and 12MHz clock speed. This CMOS IC offers 8KB of OTP/EPROM memory and 256B RAM, with an 8-bit data bus. It supports USB interface with a 1.5Mbps data rate and includes 32 I/Os and one timer/counter. Packaged in SSOP-48 with tin, gold, matte contact plating, this lead-free and RoHS compliant component operates from 4V to 5.5V with a maximum power dissipation of 300mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7C63413C-PVXC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY7C63413C-PVXC technical specifications.
| Access Time | 12us |
| Package/Case | SSOP |
| Contact Plating | Tin, Gold, Matte |
| Core Architecture | M8C |
| Data Bus Width | 8b |
| Data Rate | 1.5Mbps |
| Frequency | 12MHz |
| Interface | USB |
| Lead Free | Lead Free |
| Max Frequency | 12MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 300mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 8KB |
| Memory Type | OTP, , EPROM |
| Min Supply Voltage | 4V |
| Number of Channels | 1 |
| Number of I/Os | 32 |
| Number of Timers/Counters | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RAM Size | 256B |
| RoHS Compliant | Yes |
| Series | M8™ |
| RoHS | Compliant |
