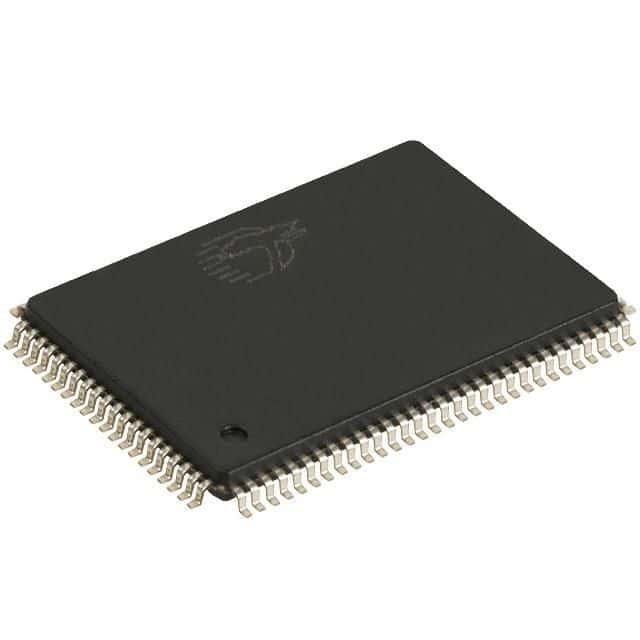

8-Bit Microcontroller featuring an 8051 core architecture operating at up to 48MHz. This CMOS microcontroller offers 16KB of RAM and 16KB of ROMless memory, with an 8-bit data bus width. Integrated interfaces include I2C, USB, and USART, supporting a 12Mbps data rate. Packaged in a TQFP-100 (10x10mm body) with tin, gold, matte contact plating, it operates from 3.15V to 3.45V and includes ESD protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7C64713-100AXC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 48us |
| Package/Case | TQFP |
| Contact Plating | Tin, Gold, Matte |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Data Rate | 12Mbps |
| ESD Protection | Yes |
| Frequency | 48MHz |
| Height | 1.4mm |
| Interface | I2C, USB, USART |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Frequency | 48MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 235mW |
| Max Supply Voltage | 3.45V |
| Memory Size | 16KB |
| Memory Type | ROMless, |
| Min Supply Voltage | 3.15V |
| Number of Channels | 1 |
| Number of I/Os | 40 |
| Number of Timers/Counters | 3 |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 72 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 16KB |
| RoHS Compliant | Yes |
| Series | EZ-USB FX1™ |
| Width | 14mm |
| RoHS | Compliant |
