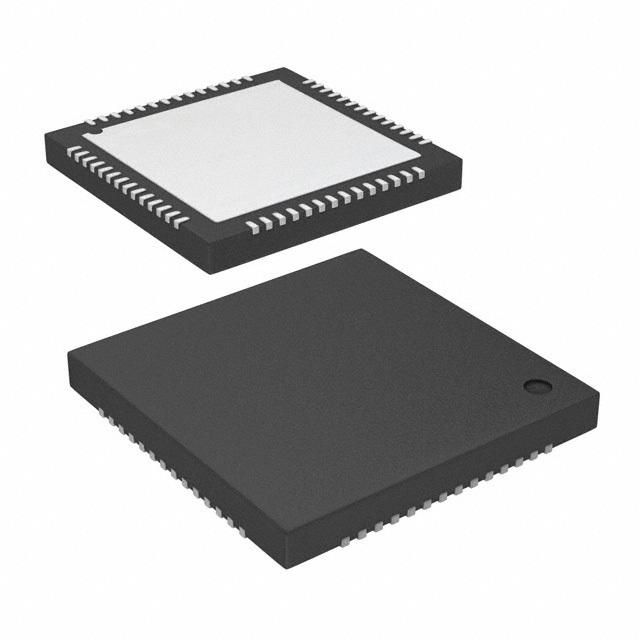

High-speed USB 2.0 bus controller IC, featuring a QFN package with 56 leads. This interface controller supports data rates up to 480Mbps, with 2 USB ports and 5 transceivers. Operates from a 3.15V to 3.45V supply voltage, consuming 86mA typical current. Includes integrated ESD protection and operates within a 0°C to 70°C temperature range. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7C65620-56LTXC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Data Rate | 480Mbps |
| ESD Protection | Yes |
| Frequency | 24MHz |
| Height | 0.88mm |
| Interface | USB |
| Lead Free | Lead Free |
| Length | 8mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.45V |
| Min Supply Voltage | 3.15V |
| Number of Channels | 1 |
| Number of Ports | 2 |
| Number of Transceivers | 5 |
| Operating Supply Current | 86mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 260 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EZ-USB HX2LP™ |
| USB Standard | USB 2.0 |
| Weight | 0.006751oz |
| Width | 8mm |
| RoHS | Compliant |
