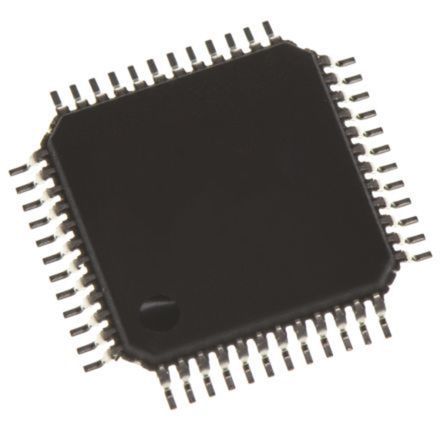

The CY7C65632-48AXCT is a dual-UART bridge IC that supports I2C and SPI interfaces, with a data rate of up to 480Mbps. It is packaged in a lead-free TQFP package and is compliant with AEC-Q100 standards. The IC operates within a temperature range of 0°C to 70°C and has a maximum supply voltage of 5.25V. It consumes an operating supply current of 97.23mA at a supply voltage of 3.45V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7C65632-48AXCT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TQFP |
| Data Rate | 480Mbps |
| Interface | I2C, SPI, GPIO |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 3.15V |
| Operating Supply Current | 97.23mA |
| Operating Supply Voltage | 3.45V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | HX2VL™ |
| RoHS | Compliant |
