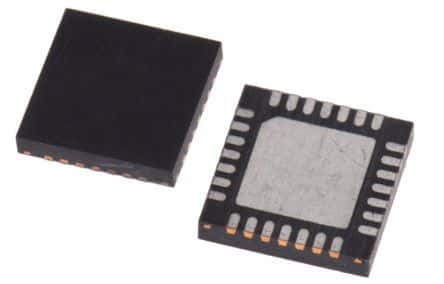

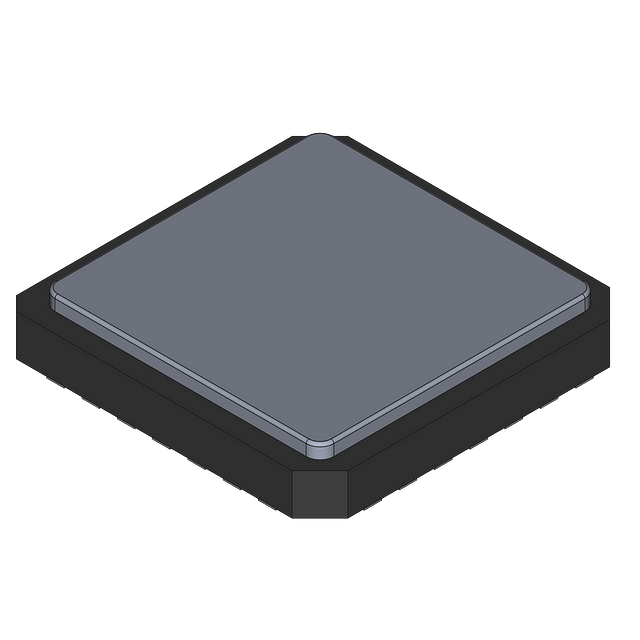

The CY7C65642-28LTXC is a 4-channel I2C/SPI bridge with a data rate of 12Mbps. It operates within a temperature range of 0°C to 70°C and is supplied with a voltage between 3.15V and 5.25V. The device is packaged in a QFN package and is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7C65642-28LTXC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Contact Plating | Gold |
| Data Rate | 12Mbps |
| ESD Protection | Yes |
| Height | 0.7mm |
| Interface | I2C, SPI |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 3.15V |
| Number of Channels | 4 |
| Operating Supply Current | 88.7mA |
| Operating Supply Voltage | 5.25V |
| Package Quantity | 490 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | HX2VL TetraHub™ |
| Weight | 0.002497oz |
| Width | 5mm |
| RoHS | Compliant |
