High-speed USB 2.0 peripheral controller with an 8-bit data bus, operating at 48MHz and supporting data rates up to 12Mbps. Features an 8051 core architecture, 16KB RAM, and ROMless memory. Interfaces include I2C, USB, and USART, with 40 I/Os and 3 timers/counters. Packaged in a 100-pin TQFP with tin, gold, and matte contact plating, this RoHS compliant component operates from 3V to 3.6V with a 3.3V nominal supply and a maximum power dissipation of 300mW. Extended operating temperature range from -40°C to 105°C.
Frequency48MHz
PackageTQFP
Quick Jump:
Technical Specifications
Cypress CY7C68013A-100AXI technical specifications.
General
Access Time
48us
Package/Case
TQFP
Contact Plating
Tin, Gold, Matte
Core Architecture
8051
Data Bus Width
8b
Data Rate
12Mbps
Frequency
48MHz
Interface
I2C, USB, USART
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
300mW
Max Supply Voltage
3.6V
Memory Type
ROMless,
Min Supply Voltage
3V
Number of Channels
1
Number of I/Os
40
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Package Quantity
72
Packaging
Tray
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EZ-USB FX2LP™
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C68013A-100AXI Datasheet
Download the complete datasheet for Cypress CY7C68013A-100AXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

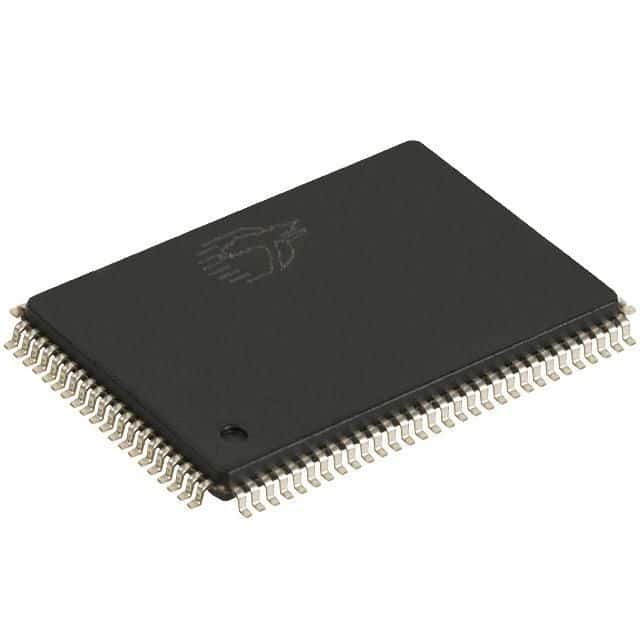

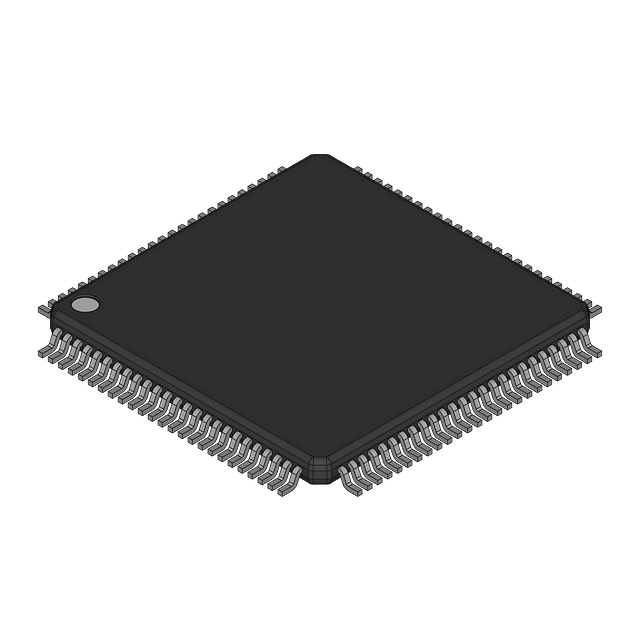

Product Images
