High-speed USB 2.0 peripheral controller featuring an 8051 core architecture. This integrated circuit supports data rates up to 12Mbps with a maximum frequency of 48MHz. It offers 16KB of RAM and 16KB of ROMless/EPROM memory, with 24 programmable I/O pins. Interface options include I2C, USB, and USART, all within a 56-pin SSOP surface-mount package. Operating from 3V to 3.6V, this lead-free component is RoHS compliant.
Frequency48MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C68013A-56PVXC technical specifications.
General
| Access Time | 48us |
| Package/Case | SSOP |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Data Rate | 12Mbps |
| Frequency | 48MHz |
| Height | 2.39mm |
| Interface | I2C, USB, USART |
| Lead Free | Lead Free |
| Length | 18.54mm |
| Max Frequency | 48MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16KB |
| Memory Type | ROMless, , EPROM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of I/Os | 24 |
| Number of Programmable I/O | 24 |
| Number of Timers/Counters | 3 |
| Package Quantity | 26 |
| Packaging | Rail/Tube |
| RAM Size | 16KB |
| RoHS Compliant | Yes |
| Series | EZ-USB FX2LP™ |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY7C68013A-56PVXC Datasheet
Download the complete datasheet for Cypress CY7C68013A-56PVXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

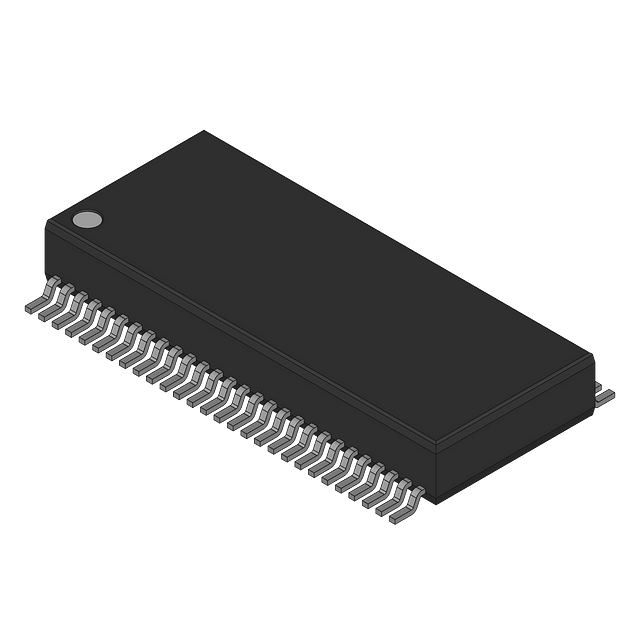

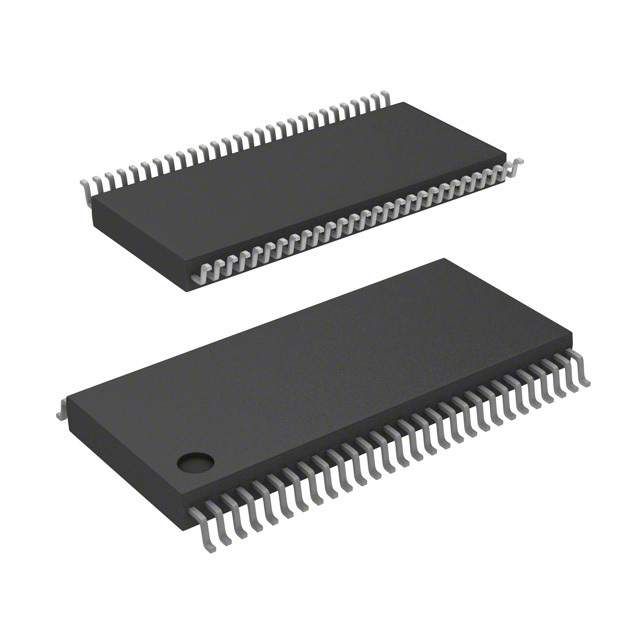

Product Images
