8-Bit Microcontroller (MCU) featuring an 8051 core architecture and operating at up to 48MHz. This CMOS component offers 16KB of RAM and ROMless memory, with an 8-bit data bus width. Integrated interfaces include I2C, USB, and USART, supporting a 12Mbps data rate. The device operates from a 3V to 3.6V supply, with a 300mW maximum power dissipation. Packaged in a TQFP-100 (PQFP100) with Tin, Gold, Matte contact plating, it is RoHS compliant and suitable for surface mount technology.
Frequency48MHz
PackageTQFP
Quick Jump:
Technical Specifications
Cypress CY7C68014A-100AXC technical specifications.
General
| Access Time | 48us |
| Package/Case | TQFP |
| Contact Plating | Tin, Gold, Matte |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Data Rate | 12Mbps |
| Frequency | 48MHz |
| Interface | I2C, USB, USART |
| Lead Free | Lead Free |
| Max Frequency | 48MHz |
| Max Operating Temperature | 70°C |
| Memory Size | 16KB |
| Memory Type | ROMless, |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 300mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of Channels | 1 |
| Number of I/Os | 40 |
| Number of Timers/Counters | 3 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | External |
| Package Quantity | 72 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 16KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EZ-USB FX2LP™ |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY7C68014A-100AXC Datasheet
Download the complete datasheet for Cypress CY7C68014A-100AXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

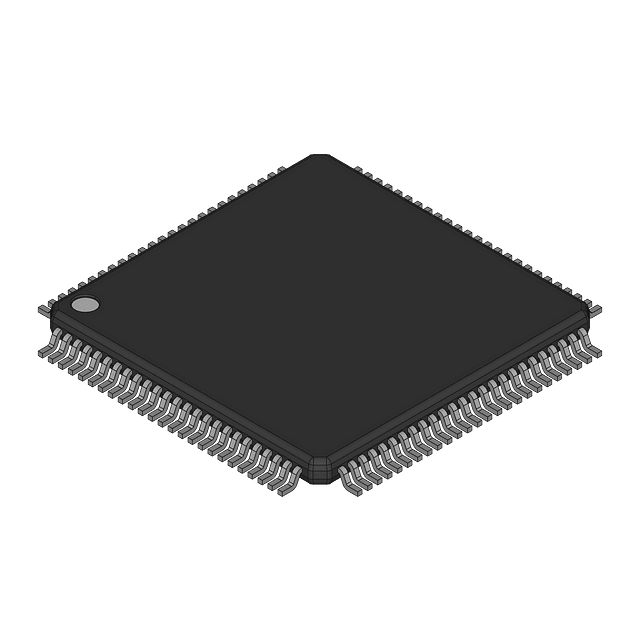

Product Images
