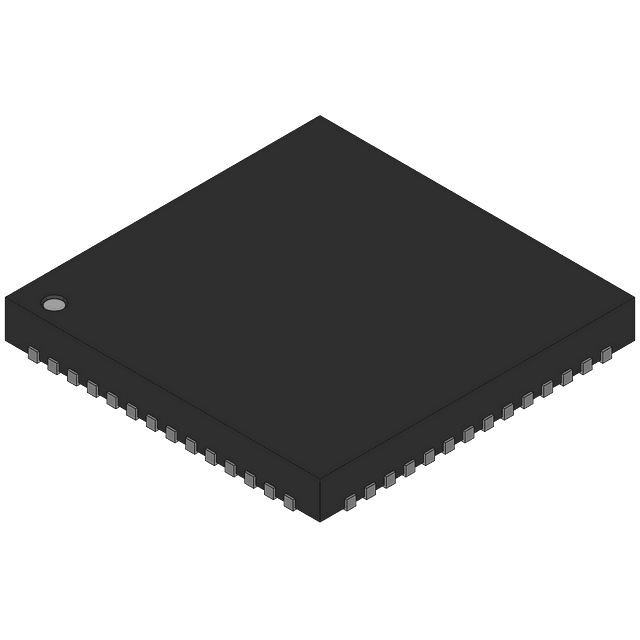

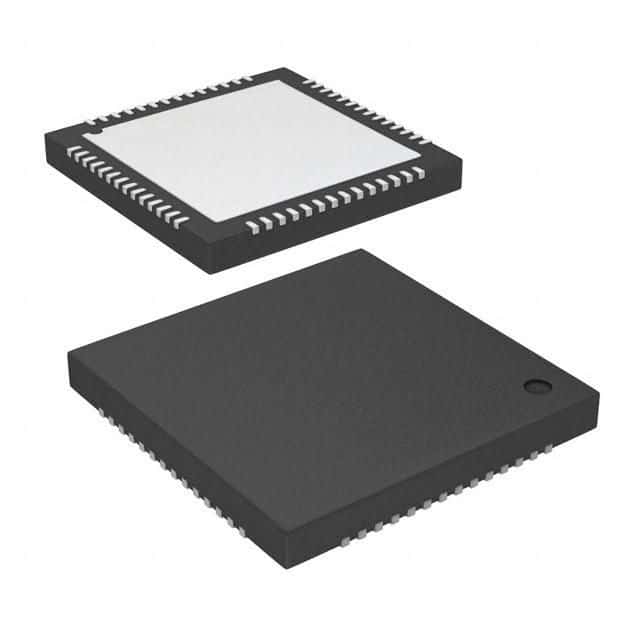

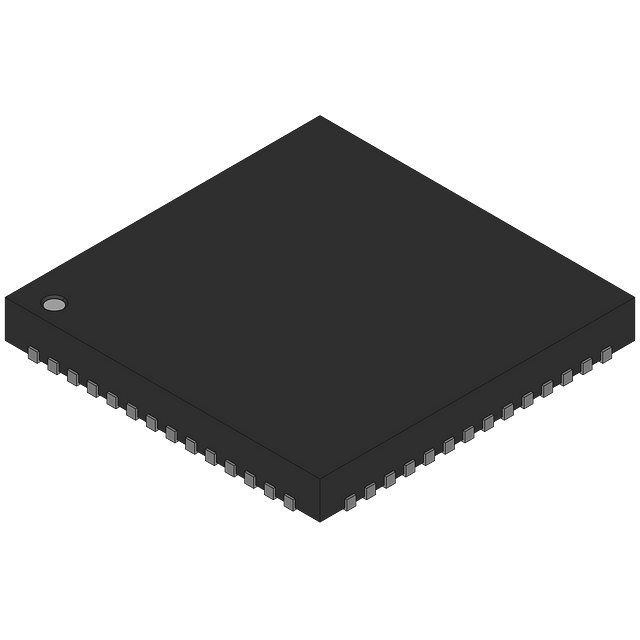

8-Bit Microcontroller, 48MHz, CMOS, QFN-56 package. Features 8051 core architecture, 16KB RAM, and ROMless memory. Supports I2C, USB, and USART interfaces with an 8-bit data bus width and 480Mbps data rate. Includes 3 timers/counters and 1 transceiver, with 26 I/Os. Operates from 3V to 3.6V supply, with ESD protection and a max power dissipation of 300mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7C68016A-56LTXC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Contact Plating | Tin, Matte |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Data Rate | 480Mbps |
| ESD Protection | Yes |
| Frequency | 48MHz |
| Height | 0.95mm |
| Interface | I2C, USB, USART, UART |
| Lead Free | Lead Free |
| Length | 8.1mm |
| Max Frequency | 48MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 300mW |
| Max Supply Voltage | 3.6V |
| Memory Type | ROMless, |
| Min Supply Voltage | 3V |
| Number of I/Os | 26 |
| Number of Timers/Counters | 3 |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 260 |
| Packaging | Tray |
| RAM Size | 16KB |
| RoHS Compliant | Yes |
| Series | EZ-USB FX2LP™ |
| Weight | 0.006751oz |
| Width | 8.1mm |
| RoHS | Compliant |
Download the complete datasheet for Cypress CY7C68016A-56LTXC to view detailed technical specifications.
