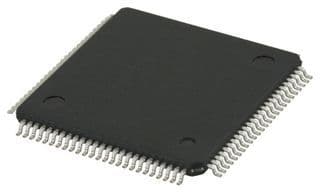

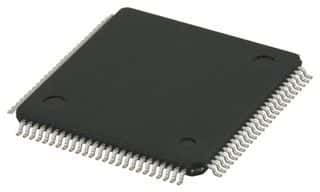

Single-channel serial I/O controller featuring a 200Mbps data rate and parallel/serial interface. This CMOS integrated circuit operates from a 4.5V to 5.5V supply, with a typical 5V operating voltage, and is housed in a 100-pin TQFP package. Designed for surface mounting, it offers a commercial temperature grade and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7C9689A-AXC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TQFP |
| Data Rate | 200Mbps |
| Interface | Parallel, Serial |
| JESD-30 Code | S-PQFP-G100 |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Package Body Material | Plastic |
| Package Code | LFQFP |
| Package Quantity | 90 |
| Package Shape | Square |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CY7C |
| Supply Current | 250mA |
| Surface Mount | Yes |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Nickel |
| Terminal Form | Gull Wing |
| Terminal Position | QUAD |
| Width | 14mm |
| RoHS | Compliant |
