8-bit microcontroller peripheral IC featuring an M8C core, operating at up to 24MHz. This CMOS device offers 1KB RAM and 8KB FLASH memory, with a 10-bit ADC resolution and a 5.85KS/s conversion rate. It supports I2C, SPI, and Serial interfaces, with 13 GPIO pins and 3 timers/counters. Packaged in a 3.1mm x 3.1mm x 0.55mm QFN with gold contact plating, it operates from 1.71V to 5.5V and is RoHS compliant.
Frequency24MHz
PackageQFN
Quick Jump:
Technical Specifications
Cypress CY8C20236A-24LKXI technical specifications.
General
| Package/Case | QFN |
| Contact Plating | Gold |
| Conversion Rate | 5.85KS/s |
| Core Architecture | M8C |
| Data Bus Width | 8b |
| Frequency | 24MHz |
| Height | 0.55mm |
| Interface | I2C, SPI, Serial |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Frequency | 24MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.71V |
| Number of GPIO | 13 |
| Number of I/Os | 13 |
| Number of Timers/Counters | 3 |
| Package Quantity | 490 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 1KB |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Series | CapSense® Controllers |
| Watchdog Timer | Yes |
| Width | 3.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY8C20236A-24LKXI Datasheet
Download the complete datasheet for Cypress CY8C20236A-24LKXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

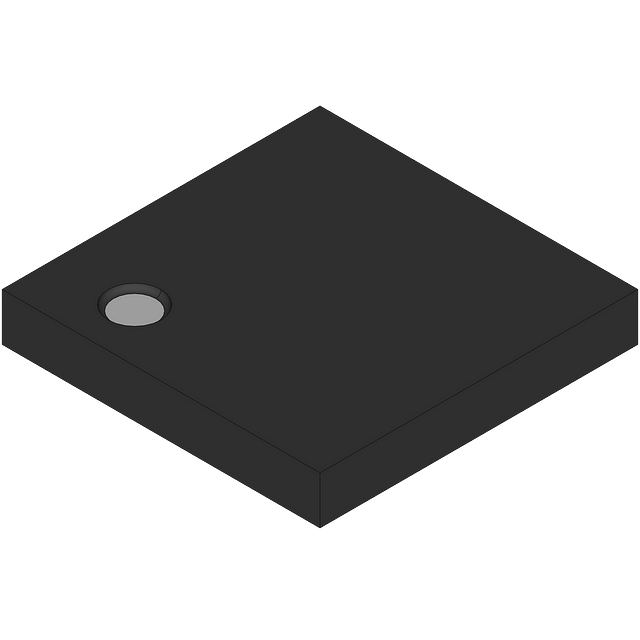

Product Images
