Multifunction peripheral IC featuring an 8-bit M8C core architecture operating at up to 24MHz. This CMOS component offers 13 GPIO, including 10 programmable I/Os, and supports I2C, SPI, and Serial interfaces. On-chip memory includes 16KB FLASH and 2KB RAM, with a 10-bit ADC resolution and a 5.85KS/s conversion rate. Designed for a wide operating temperature range of -40°C to 85°C, it accepts supply voltages from 1.71V to 5.5V and includes peripherals like PWM and I2C, along with a watchdog timer. Packaged in a 3.1mm x 3.1mm x 0.55mm QFN, this RoHS compliant device is lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY8C20246A-24LKXI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

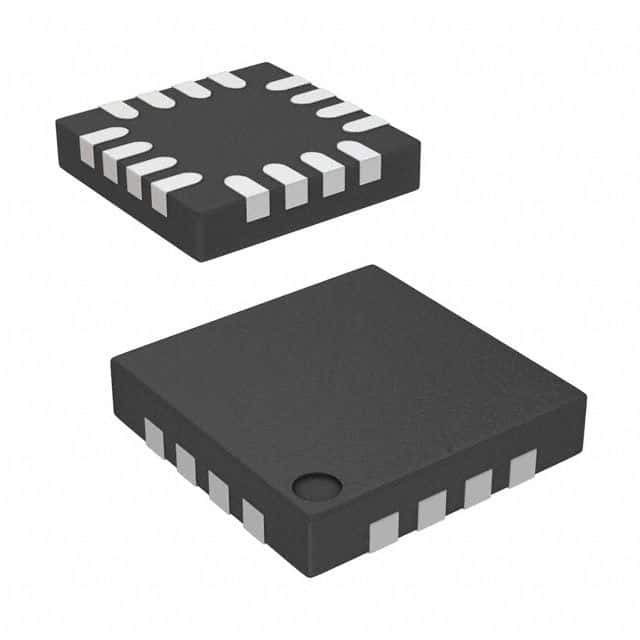

Cypress CY8C20246A-24LKXI technical specifications.
| Package/Case | QFN |
| Conversion Rate | 5.85KS/s |
| Core Architecture | M8C |
| Data Bus Width | 8b |
| Frequency | 24MHz |
| Height | 0.55mm |
| Interface | I2C, SPI, Serial |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Frequency | 24MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.71V |
| Number of GPIO | 13 |
| Number of I/Os | 13 |
| Number of Programmable I/O | 10 |
| Number of Timers/Counters | 3 |
| Package Quantity | 490 |
| Packaging | Tray |
| Peripherals | PWM, I2C |
| Radiation Hardening | No |
| RAM Size | 2KB |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Series | CapSense® Controllers |
| Watchdog Timer | Yes |
| Width | 3.1mm |
| RoHS | Compliant |
