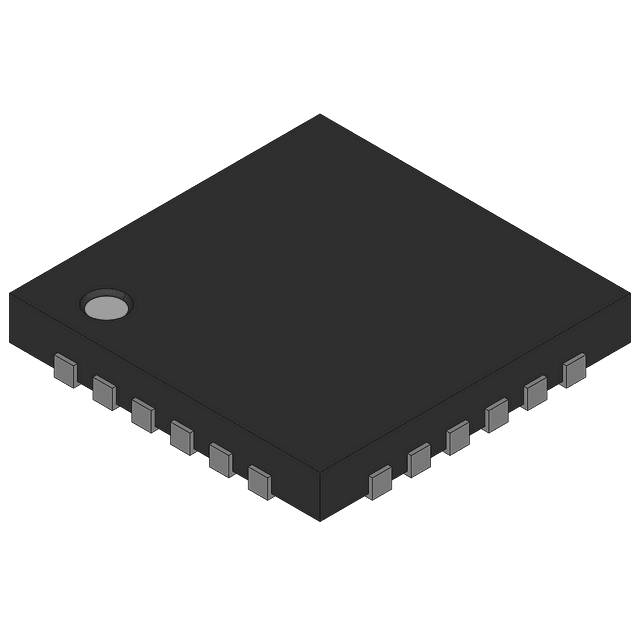

Multifunction Peripheral IC, CMOS technology, featuring an 8-bit M8C core architecture. Operates with a max frequency of 12.6MHz, supporting I2C, SPI, and UART interfaces. Includes 8KB FLASH memory, 512B RAM, and 17 programmable GPIO pins. Packaged in a 4mm x 4mm QFN EP with a height of 0.6mm, this lead-free, RoHS compliant component offers a wide operating voltage range of 2.4V to 5.25V and operates from -40°C to 85°C. Integrated peripherals include POR, WDT, LVD, PWM, and I2C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY8C20324-12LQXI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN EP |
| Core Architecture | M8C |
| Data Bus Width | 8b |
| Height | 0.6mm |
| Interface | I2C, SPI, UART |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Frequency | 12.6MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.4V |
| Number of GPIO | 17 |
| Number of I/Os | 20 |
| Number of Programmable I/O | 17 |
| Number of Timers/Counters | 2 |
| Oscillator Type | Internal |
| Package Quantity | 490 |
| Packaging | Tray |
| Peripherals | POR, WDT, LVD, PWM, I2C |
| Radiation Hardening | No |
| RAM Size | 512B |
| RoHS Compliant | Yes |
| Series | PSOC®1 CY8C20xxx |
| Technology | CMOS |
| Watchdog Timer | Yes |
| Width | 4mm |
| RoHS | Compliant |
