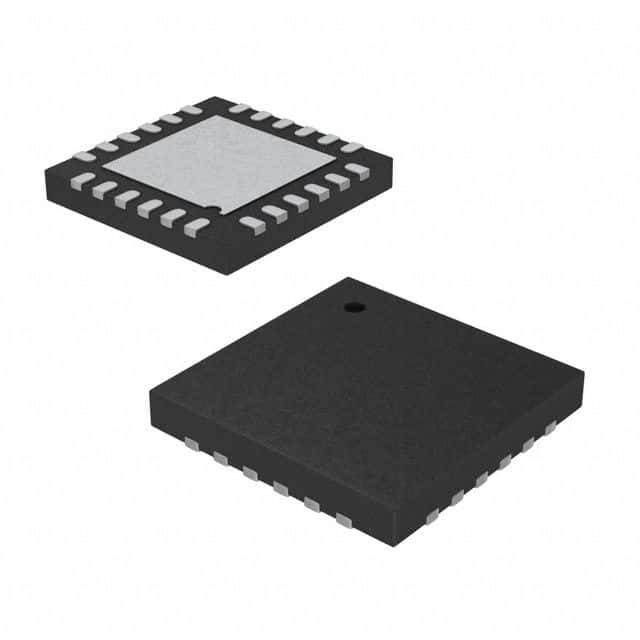

CMOS Multifunction Peripheral IC featuring an 8-bit M8C core architecture operating up to 24MHz. Offers 16KB FLASH memory, 2KB RAM, and 19 GPIO pins, with 16 programmable I/O. Supports I2C, SPI, USB, and Serial interfaces, with a 10-bit ADC resolution and 5.85KS/s conversion rate. Housed in a 4mm x 4mm x 0.525mm QFN package with gold contact plating. Operates from 1.71V to 5.5V, with a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY8C20396A-24LQXI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Contact Plating | Gold |
| Conversion Rate | 5.85KS/s |
| Core Architecture | M8C |
| Data Bus Width | 8b |
| Frequency | 24MHz |
| Height | 0.525mm |
| Interface | I2C, SPI, USB, Serial |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Frequency | 24MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.71V |
| Number of GPIO | 19 |
| Number of I/Os | 19 |
| Number of Programmable I/O | 16 |
| Number of Timers/Counters | 3 |
| Package Quantity | 490 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 2KB |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Series | CapSense® Controllers |
| Watchdog Timer | Yes |
| Width | 4mm |
| RoHS | Compliant |
