Multifunction peripheral IC featuring an 8-bit M8C core architecture, operating at up to 24MHz. This CMOS component offers 28 programmable I/Os, supporting I2C and SPI interfaces, and includes 3 timers/counters with a watchdog timer. With 8KB of FLASH memory and 1KB of RAM, it operates from a 1.71V to 5.5V supply. Packaged in a 32-pin QFN with gold contact plating, this RoHS compliant device is suitable for operation between -40°C and 85°C.
Frequency24MHz
PackageQFN
Quick Jump:
Technical Specifications
Cypress CY8C20436A-24LQXIT technical specifications.
General
Package/Case
QFN
Contact Plating
Gold
Core Architecture
M8C
Data Bus Width
8b
Frequency
24MHz
Interface
I2C, SPI
Lead Free
Lead Free
Max Frequency
24MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.71V
Number of GPIO
28
Number of I/Os
28
Number of Programmable I/O
28
Number of Timers/Counters
3
Operating Supply Voltage
3V
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
CapSense® Controllers
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Cypress CY8C20436A-24LQXIT Datasheet
Download the complete datasheet for Cypress CY8C20436A-24LQXIT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

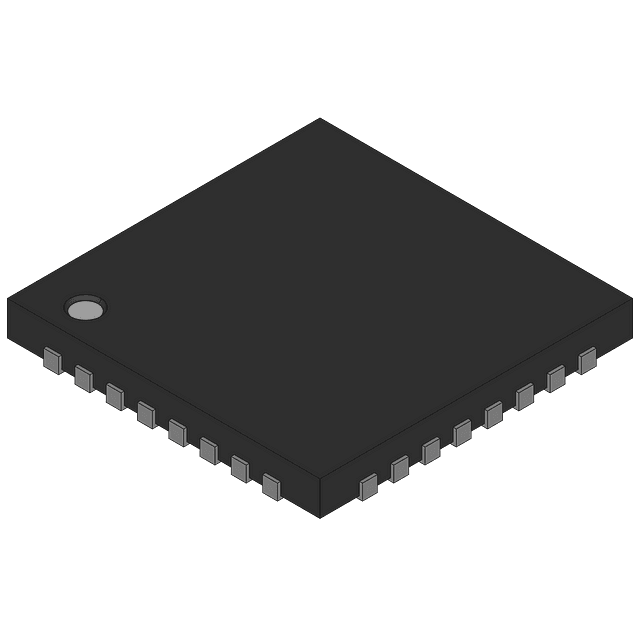

Product Images
