Multifunction Peripheral IC, featuring an 8-bit M8C core architecture operating at up to 24MHz. This CMOS component offers 36 programmable I/Os, 1KB RAM, and 8KB FLASH memory. It supports I2C, SPI, and Serial interfaces, with a 10-bit ADC resolution and a conversion rate of 5.85KS/s. Packaged in a 7mm x 7mm x 0.88mm QFN with gold contact plating, it operates from 1.71V to 5.5V and is RoHS compliant.
Frequency24MHz
PackageQFN
Quick Jump:
Technical Specifications
Cypress CY8C20636A-24LTXI technical specifications.
General
Package/Case
QFN
Contact Plating
Gold
Conversion Rate
5.85KS/s
Core Architecture
M8C
Data Bus Width
8b
Frequency
24MHz
Height
0.88mm
Interface
I2C, SPI, Serial
Lead Free
Lead Free
Length
7mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.71V
Number of GPIO
36
Number of I/Os
36
Number of Programmable I/O
36
Number of Timers/Counters
3
Package Quantity
260
Packaging
Tray
Radiation Hardening
No
RAM Size
1KB
Resolution
10b
RoHS Compliant
Yes
Series
CapSense® Controllers
Watchdog Timer
Yes
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Cypress CY8C20636A-24LTXI Datasheet
Download the complete datasheet for Cypress CY8C20636A-24LTXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

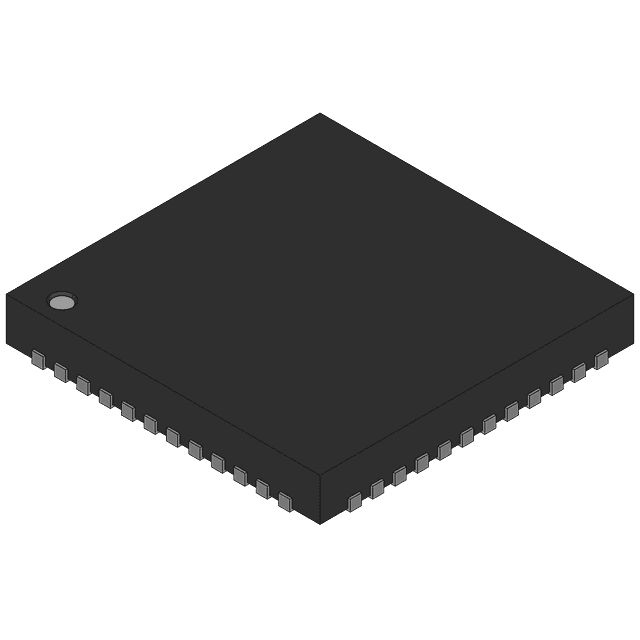

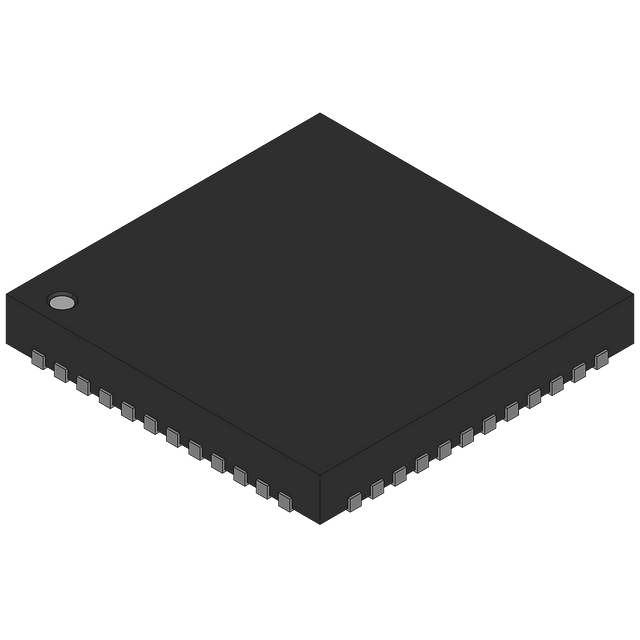

Product Images
