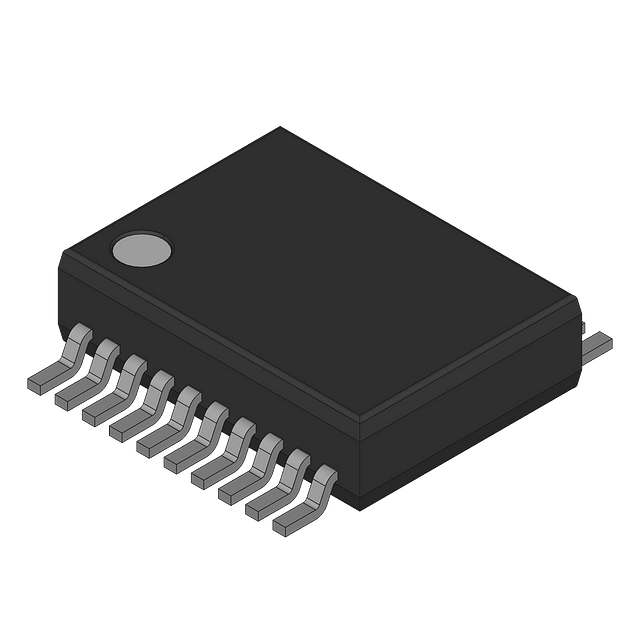

CMOS microcontroller with an 8-bit M8C core, operating at up to 24MHz. Features 8KB FLASH memory, 512B RAM, and 12 GPIO pins. Supports I2C, SPI, and UART/USART interfaces. Packaged in a 20-pin SSOP with tin plating, this component offers a wide operating temperature range of -40°C to 85°C and a supply voltage from 2.4V to 5.25V. Includes POR, PWM, and WDT peripherals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY8C21334B-24PVXI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY8C21334B-24PVXI technical specifications.
| Package/Case | SSOP |
| Contact Plating | Tin |
| Core Architecture | M8C |
| Data Bus Width | 8b |
| Height | 1.85mm |
| Interface | I2C, SPI, UART, USART |
| Length | 7.4mm |
| Max Frequency | 24MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.4V |
| Number of GPIO | 12 |
| Number of I/Os | 16 |
| Oscillator Type | Internal |
| Package Quantity | 66 |
| Packaging | Rail/Tube |
| Peripherals | POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 512B |
| RoHS Compliant | Yes |
| Series | PSOC®1 CY8C21xxx |
| Technology | CMOS |
| Width | 5.6mm |
| RoHS | Compliant |
