Multifunction Peripheral IC featuring an 8-bit M8C core architecture operating at up to 24MHz. This CMOS component offers 28 GPIO pins and supports I2C, SPI, and UART/USART interfaces. On-chip memory includes 8KB of FLASH and 512B of RAM, with integrated peripherals such as POR, PWM, WDT, and I2C. Packaged in a 5mm x 5mm x 0.88mm QFN with gold contact plating, it operates from 2.4V to 5.25V and is RoHS compliant.
Frequency24MHz
PackageQFN
Quick Jump:
Technical Specifications
Cypress CY8C21434-24LTXI technical specifications.
General
| Package/Case | QFN |
| Contact Plating | Gold |
| Core Architecture | M8C |
| Data Bus Width | 8b |
| Frequency | 24MHz |
| Height | 0.88mm |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Frequency | 24MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.4V |
| Number of GPIO | 28 |
| Number of I/Os | 28 |
| Number of Timers/Counters | 1 |
| Oscillator Type | Internal |
| Package Quantity | 490 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, I2C |
| Radiation Hardening | No |
| RAM Size | 512B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PSOC®1 CY8C21xxx |
| Technology | CMOS |
| Watchdog Timer | Yes |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY8C21434-24LTXI Datasheet
Download the complete datasheet for Cypress CY8C21434-24LTXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

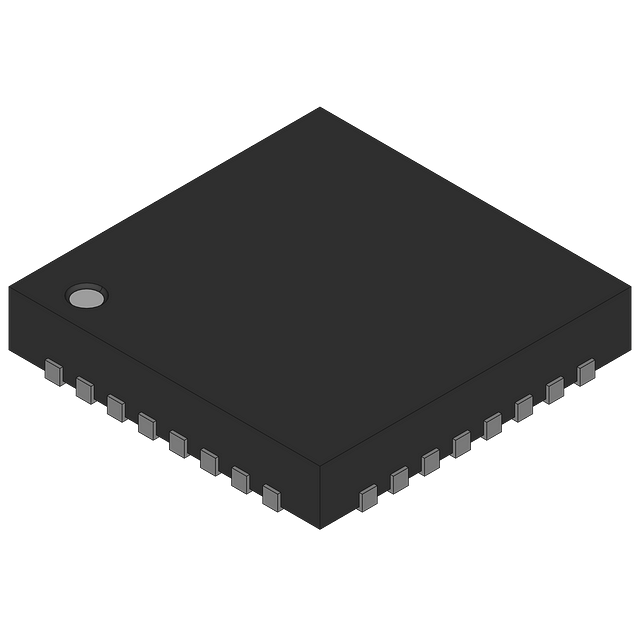

Product Images
