8-bit CMOS microcontroller featuring an M8C core, operating at up to 24MHz. This peripheral IC offers 16KB of FLASH memory and 1KB of RAM, with 56 programmable I/Os. Interfaces include I2C, SPI, USB, UART, and USART. Housed in a 68-pin QFN package (8x8mm, 0.85mm height), it operates from 3V to 5.25V and supports an extended temperature range of -40°C to 85°C. Includes POR, PWM, and WDT peripherals.
Frequency24MHz
PackageQFN
Quick Jump:
Technical Specifications
Cypress CY8C24094-24LTXI technical specifications.
General
| Package/Case | QFN |
| Core Architecture | M8C |
| Data Bus Width | 8b |
| Frequency | 24MHz |
| Height | 0.85mm |
| Interface | I2C, SPI, USB, UART, USART, Serial |
| Lead Free | Lead Free |
| Length | 8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 3V |
| Number of GPIO | 56 |
| Number of I/Os | 56 |
| Oscillator Type | Internal |
| Package Quantity | 260 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 1KB |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Series | PSOC®1 CY8C24xxx |
| Technology | CMOS |
| Width | 8mm |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY8C24094-24LTXI Datasheet
Download the complete datasheet for Cypress CY8C24094-24LTXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

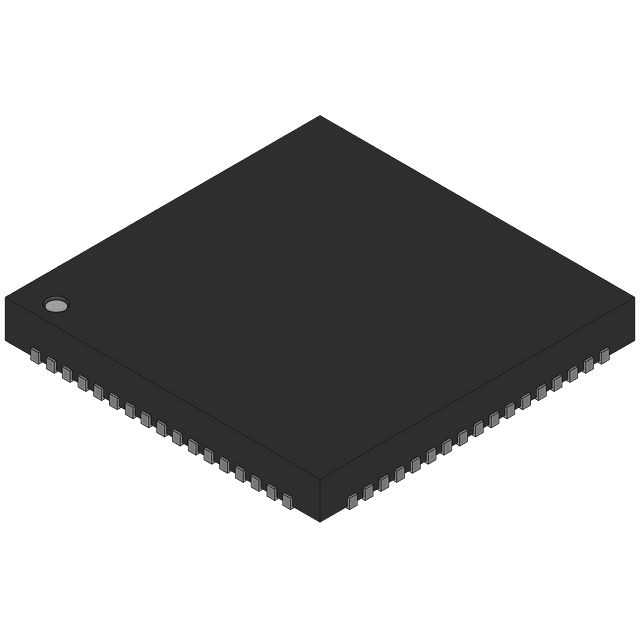

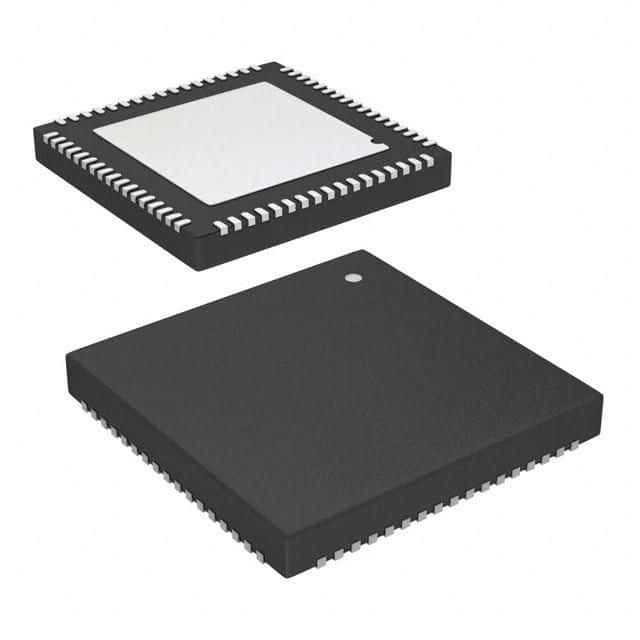

Product Images
