Multifunction peripheral IC featuring an 8-bit M8C core architecture operating at up to 24MHz. This CMOS component offers 4KB FLASH memory, 256B RAM, and 16 programmable I/Os. Integrated peripherals include I2C, SPI, UART, USART, POR, PWM, and a watchdog timer. Packaged in a 20-pin SSOP with tin, gold, or matte contact plating, it operates from 3V to 5.25V supply voltage and across a -40°C to 85°C temperature range.
Frequency24MHz
PackageSSOP
Quick Jump:
Technical Specifications
Cypress CY8C24223A-24PVXI technical specifications.
General
Access Time
24us
Package/Case
SSOP
Contact Plating
Tin, Gold, Matte
Core Architecture
M8C
Data Bus Width
8b
Frequency
24MHz
Height
1.85mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
7.4mm
Max Frequency
24MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.25V
Memory Size
4KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of I/Os
16
Number of Programmable I/O
16
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
66
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PSOC®1 CY8C24xxx
Technology
CMOS
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Cypress CY8C24223A-24PVXI Datasheet
Download the complete datasheet for Cypress CY8C24223A-24PVXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

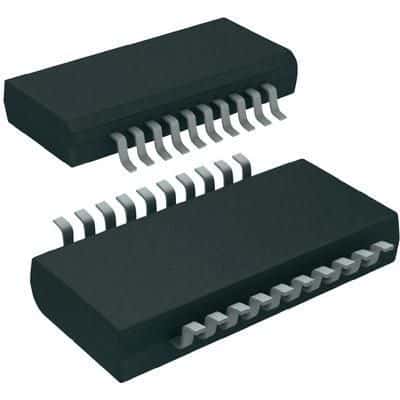

Product Images
