CMOS microcontroller featuring an 8-bit M8C core, operating at up to 24MHz. This peripheral IC offers 4KB FLASH memory, 256B RAM, and 24 programmable I/Os. Integrated peripherals include POR, PWM, WDT, I2C, SPI, and UART/USART interfaces. Packaged in an SSOP-28 with tin, gold, or matte contact plating, it operates from 3V to 5.25V supply voltage and is RoHS compliant.
Frequency24MHz
PackageSSOP
Quick Jump:
Technical Specifications
Cypress CY8C24423A-24PVXI technical specifications.
General
| Access Time | 24us |
| Package/Case | SSOP |
| Contact Plating | Tin, Gold, Matte |
| Core Architecture | M8C |
| Data Bus Width | 8b |
| Frequency | 24MHz |
| Height | 1.85mm |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Frequency | 24MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 4KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 3V |
| Number of I/Os | 24 |
| Number of Programmable I/O | 24 |
| Number of Timers/Counters | 4 |
| Oscillator Type | Internal |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Peripherals | POR, PWM, WDT, I2C |
| Radiation Hardening | No |
| RAM Size | 256B |
| RoHS Compliant | Yes |
| Series | PSOC®1 CY8C24xxx |
| Technology | CMOS |
| Watchdog Timer | Yes |
| Width | 5.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY8C24423A-24PVXI Datasheet
Download the complete datasheet for Cypress CY8C24423A-24PVXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

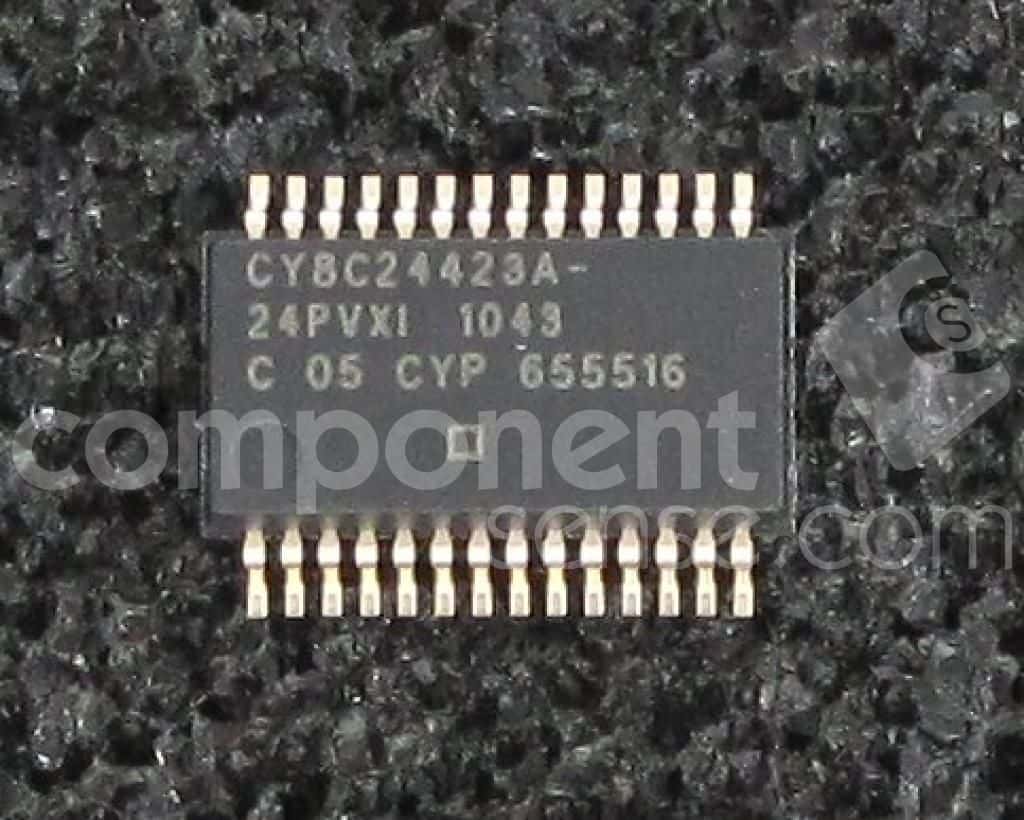

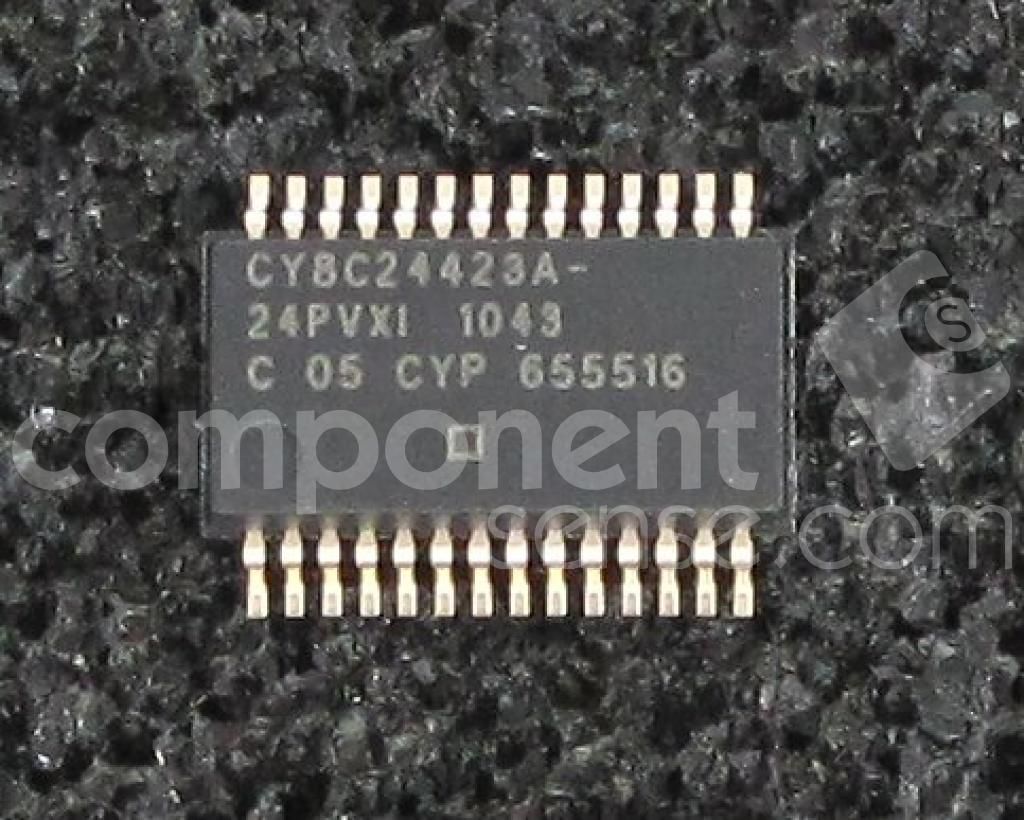

Product Images
