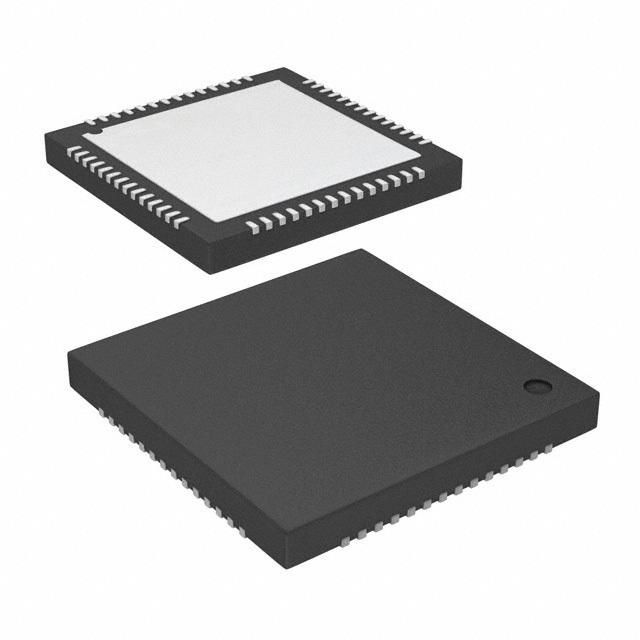

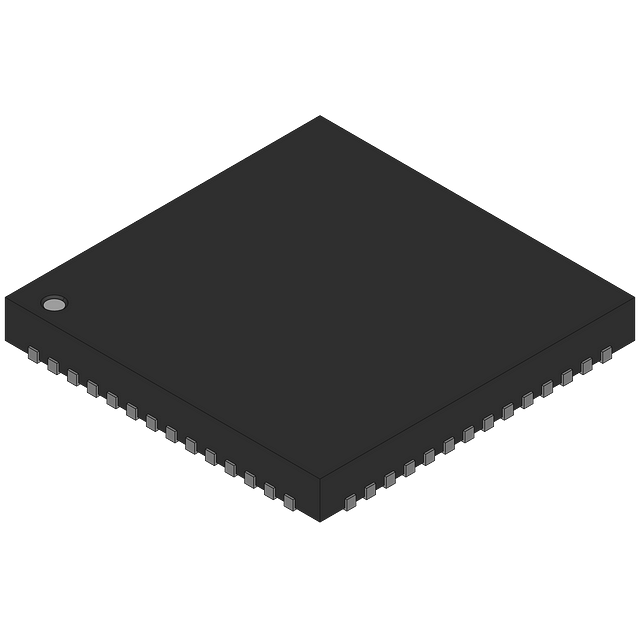

CMOS microcontroller with an 8-bit M8C core, operating at 24MHz with a maximum frequency of 49.92MHz. Features 16KB FLASH memory, 1KB RAM, and 49 programmable I/Os supporting I2C, SPI, USB, UART, and USART interfaces. Includes 4 PWM channels, 4 timers/counters, POR, WDT, LVD, and internal oscillator. Packaged in a lead-free, 8.1mm x 8.1mm x 0.95mm QFN with gold contact plating, suitable for operation between -40°C and 85°C.
Frequency24MHz
PackageQFN
Quick Jump:
Technical Specifications
Cypress CY8C24894-24LTXI technical specifications.
General
Package/Case
QFN
Contact Plating
Gold
Core Architecture
M8C
Data Bus Width
8b
Frequency
24MHz
Height
0.95mm
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Length
8.1mm
Max Frequency
49.92MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
3V
Number of GPIO
49
Number of I/Os
49
Number of Programmable I/O
49
Number of PWM Channels
4
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
260
Packaging
Tray
Peripherals
POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PSOC®1 CY8C24xxx
Technology
CMOS
Watchdog Timer
Yes
Width
8.1mm
Compliance
RoHS
Compliant
