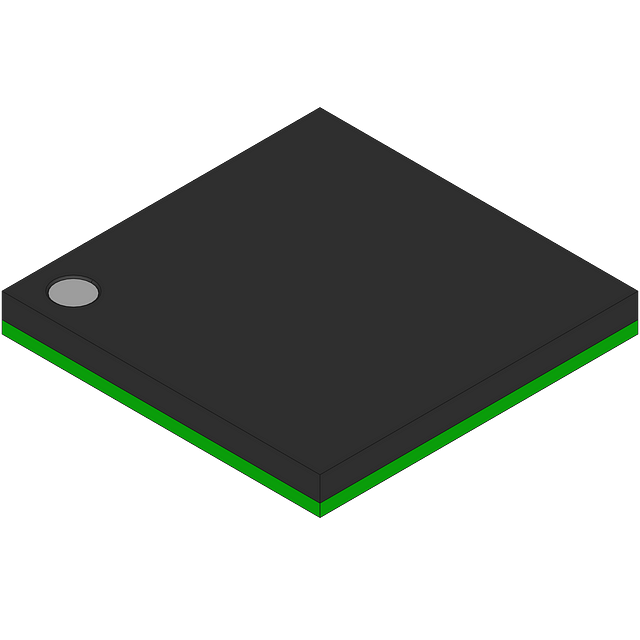

CMOS Multifunction Peripheral IC featuring an 8-bit M8C core architecture. Offers 16KB FLASH memory and 1024B RAM, supporting I2C, SPI, USB, UART, and USART interfaces. Operates from a 3V to 5.25V supply voltage with an internal oscillator. Packaged in a 6mm x 6mm VFBGA with 56 I/Os, this surface-mount component is lead-free and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY8C24994-24BVXI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY8C24994-24BVXI technical specifications.
| Access Time | 24us |
| Package/Case | VFBGA |
| Core Architecture | M8C |
| Data Bus Width | 8b |
| Height | 0.66mm |
| Interface | I2C, SPI, USB, UART, USART |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of I/Os | 56 |
| Operating Supply Voltage | 5V |
| Oscillator Type | Internal |
| Package Quantity | 429 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 1024B |
| RoHS Compliant | Yes |
| Series | PSOC®1 CY8C24xxx |
| Technology | CMOS |
| Width | 6mm |
| RoHS | Compliant |
