CMOS microcontroller featuring an 8-bit M8C core, operating at up to 24MHz. This peripheral IC offers 16KB of FLASH memory and 256B of RAM, with 44 programmable I/Os. Integrated peripherals include POR, PWM, WDT, I2C, SPI, and UART/USART interfaces. Packaged in a 7x7mm QFN with gold contact plating, it operates from 3V to 5.25V and is RoHS compliant.
Frequency24MHz
PackageQFN
Quick Jump:
Technical Specifications
Cypress CY8C27643-24LTXI technical specifications.
General
Package/Case
QFN
Contact Plating
Gold
Core Architecture
M8C
Data Bus Width
8b
Frequency
24MHz
Height
0.88mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
7mm
Max Frequency
24MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
3V
Number of I/Os
44
Number of Programmable I/O
44
Oscillator Type
Internal
Package Quantity
260
Packaging
Tray
Peripherals
POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PSOC®1 CY8C27xxx
Technology
CMOS
Watchdog Timer
Yes
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Cypress CY8C27643-24LTXI Datasheet
Download the complete datasheet for Cypress CY8C27643-24LTXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

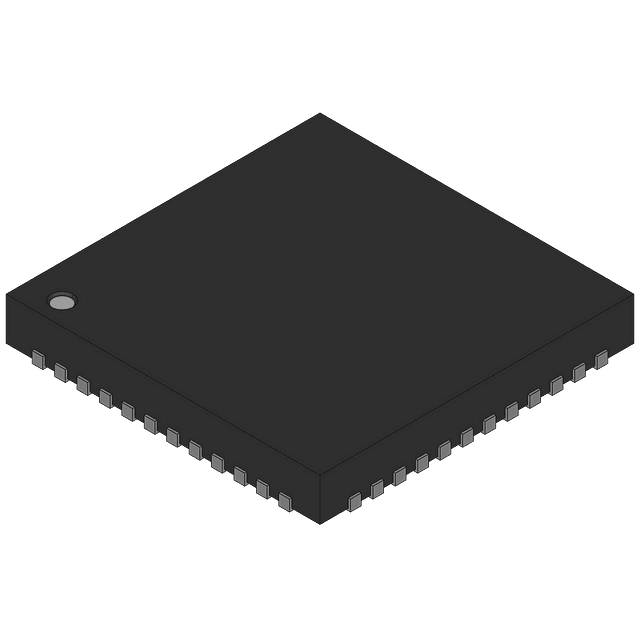

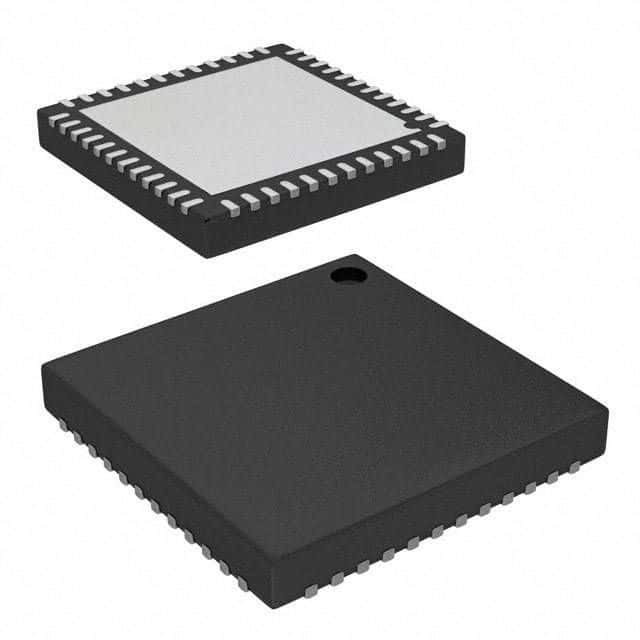

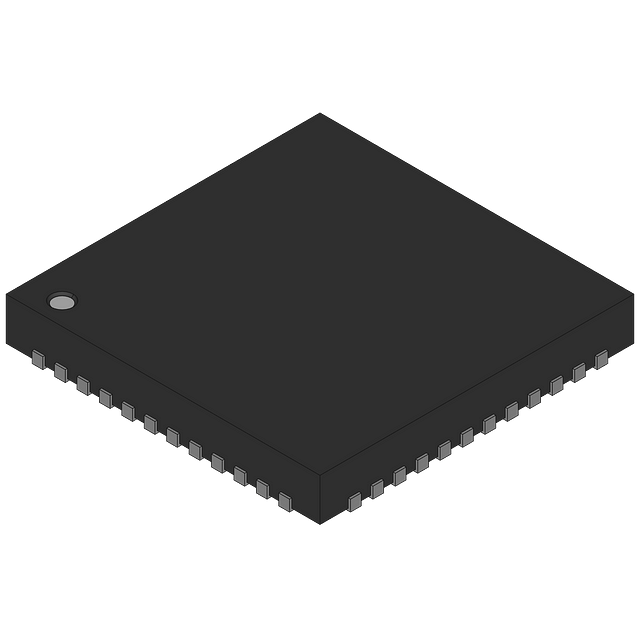

Product Images
