CMOS microcontroller with an 8-bit data bus, featuring an M8C core architecture and operating at 24MHz, with a maximum frequency of 49.2MHz. This peripheral IC offers 1KB RAM and 16KB FLASH memory, supporting I2C, SPI, IrDA, UART, and USART interfaces. It includes 44 programmable I/Os, an internal oscillator, and integrated peripherals like POR, PWM, WDT, LVD, and I2C. Packaged in a 7x7mm QFN with gold contact plating, this RoHS compliant component operates from 3V to 5.25V supply voltage and across a temperature range of -40°C to 85°C.
Frequency24MHz
PackageQFN
Quick Jump:
Technical Specifications
Cypress CY8C28645-24LTXI technical specifications.
General
Package/Case
QFN
Contact Plating
Gold
Core Architecture
M8C
Data Bus Width
8b
Frequency
24MHz
Height
0.9mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
7mm
Max Frequency
49.2MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
3V
Number of I/Os
44
Number of Programmable I/O
44
Oscillator Type
Internal
Package Quantity
260
Packaging
Tray
Peripherals
POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
PSOC®1 CY8C28xxx
Technology
CMOS
Watchdog Timer
Yes
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Cypress CY8C28645-24LTXI Datasheet
Download the complete datasheet for Cypress CY8C28645-24LTXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

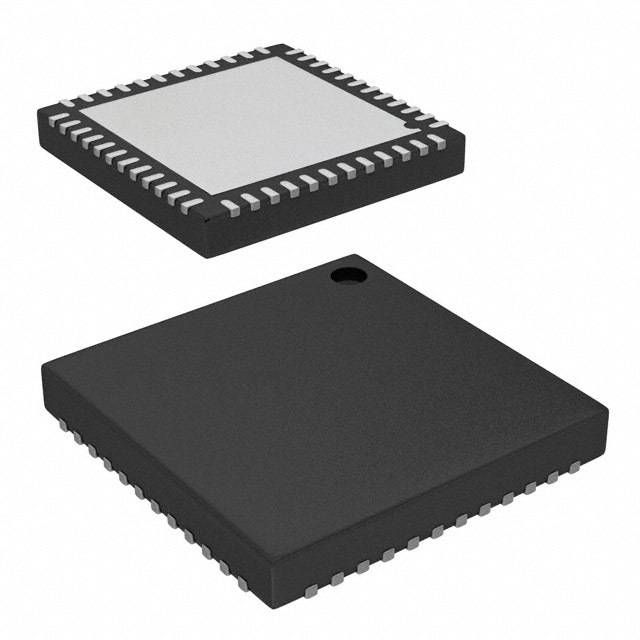

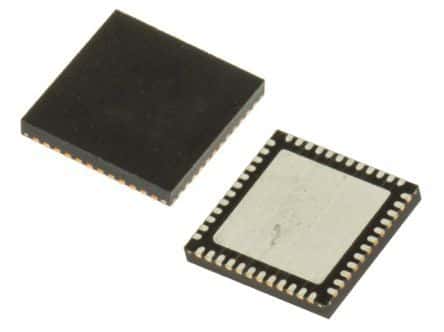

Product Images
