8-bit CMOS microcontroller featuring an 8051 core, operating at up to 50MHz. Offers 16KB FLASH and 2KB RAM, with 25 GPIO and 29 programmable I/Os. Integrated peripherals include I2C, SPI, USB, UART, USART, EBI/EMI interfaces, 4 timers/counters, POR, PWM, WDT, DMA, LCD, and CapSense. Packaged in a QFN with gold contact plating, this lead-free, RoHS compliant component operates from 1.7V to 5.5V, with an extended temperature range of -40°C to 85°C.
Frequency50MHz
PackageQFN
Quick Jump:
Technical Specifications
Cypress CY8C3444LTI-119 technical specifications.
General
Package/Case
QFN
Contact Plating
Gold
Core Architecture
8051
Data Bus Width
8b
Frequency
50MHz
Interface
I2C, SPI, USB, UART, USART, EBI/EMI
Lead Free
Lead Free
Max Frequency
50MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.7V
Number of GPIO
25
Number of I/Os
25
Number of Programmable I/O
29
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
260
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, LCD, CapSense
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
PSOC® 3 CY8C34xx
Technology
CMOS
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Cypress CY8C3444LTI-119 Datasheet
Download the complete datasheet for Cypress CY8C3444LTI-119 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

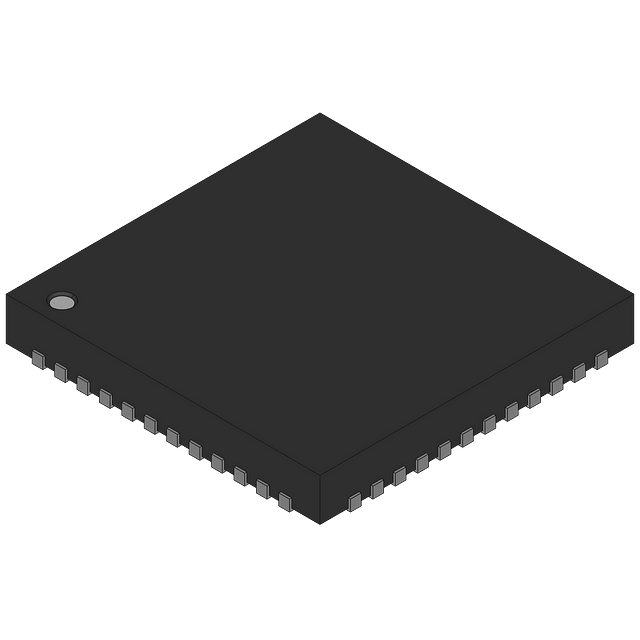

Product Images
