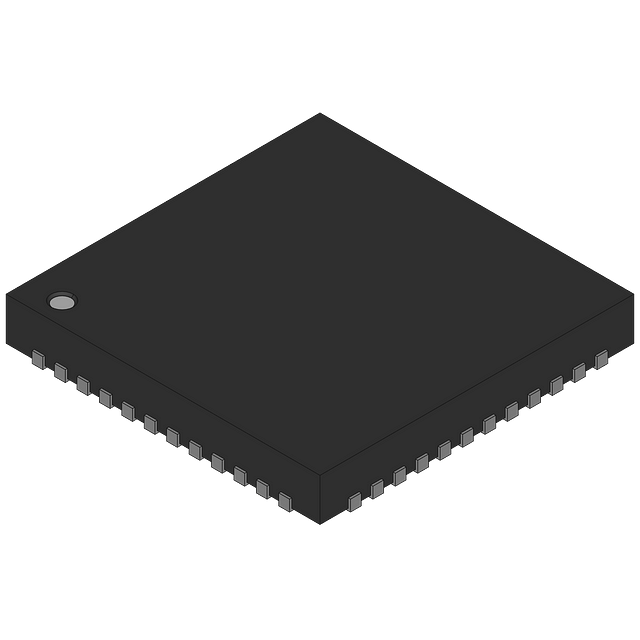

The CY8C3444LTI-119T is a 16KB FLASH microcontroller based on the 8051 core, operating at a frequency of 50MHz. It features an 8-bit data bus and supports various interfaces, including I2C, SPI, UART, USART, and EBI/EMI. The device is packaged in a QFN package and is RoHS compliant. It operates over a temperature range of -40°C to 85°C and has a maximum supply voltage of 5.5V. The microcontroller includes peripherals such as a power-on reset, pulse-width modulation, watch dog timer, direct memory access, and capacitive sensing.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY8C3444LTI-119T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY8C3444LTI-119T technical specifications.
| Package/Case | QFN |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 50MHz |
| Interface | I2C, SPI, UART, USART, EBI/EMI |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.7V |
| Number of GPIO | 25 |
| Number of I/Os | 25 |
| Number of Timers/Counters | 4 |
| Oscillator Type | Internal |
| Package Quantity | 2000 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, DMA, LCD, CapSense |
| RAM Size | 2KB |
| RoHS Compliant | Yes |
| Series | PSOC® 3 CY8C34xx |
| RoHS | Compliant |
